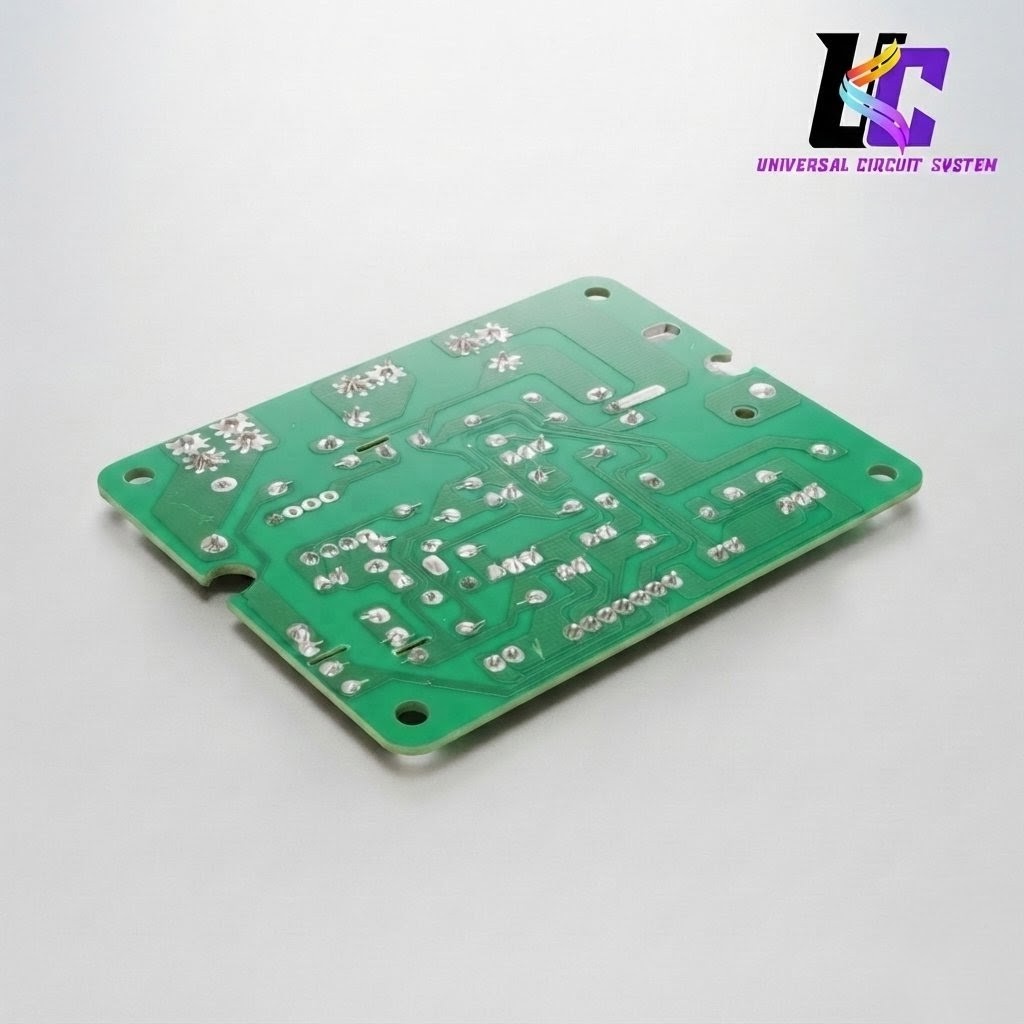

220V 2000W–2200W Universal Infrared Cooker Motherboard / Replacement Circuit Board PCB
Roll over image to zoom in
৳ 500.00৳ 600.00 (-17%)
220V 2000W–2200W Universal Infrared Cooker Motherboard
Product Description:
This high-performance universal replacement circuit board is designed for repairing or upgrading 220V electric ceramic stoves, infrared cookers, and high-wattage heating appliances. Built for heavy-duty performance, it easily handles power loads between 2000W and 2200W.
Key Features:
- High Power Capacity: Supports 2000W–2200W heating element loads.
- Optimal Heat Dissipation: Features a large aluminum heatsink to protect critical components from thermal damage.
- Built-In Safety Protection: Equipped with an overcurrent safety fuse and filtering capacitors to prevent voltage surges.
- Audio Feedback: Integrated piezo buzzer provides clear tones for system alerts and user inputs.
- Universal Compatibility: Fits most standard tabletop infrared and halogen cooktops for quick repair turnarounds.
If you want to make sure this fits your cooker chassis, let me know the dimensions of your existing board or the type of control panel connector it uses!
220V 2000W–2200W Universal Infrared Cooker Motherboard / Replacement Circuit Board PCB
Product Overview
This universal infrared cooker motherboard is engineered as a high-performance replacement circuit board for repairing or modifying standard electric ceramic stoves and infrared induction cooktops. Featuring a broad input voltage range and a robust power threshold up to 2200W, it serves as a highly versatile solution for restaurateurs, repair technicians, and DIY electronics hobbyists looking to restore faulty cooking appliances back to peak operating conditions.
220V 2000W–2200W Universal Infrared Cooker Motherboard / Replacement Circuit Board PCB
Key Performance & Engineering Features
- High Power Capacity: Effortlessly manages a continuous power load of 2000W to 2200W, ensuring rapid thermal performance for high-wattage heating coils and elements.

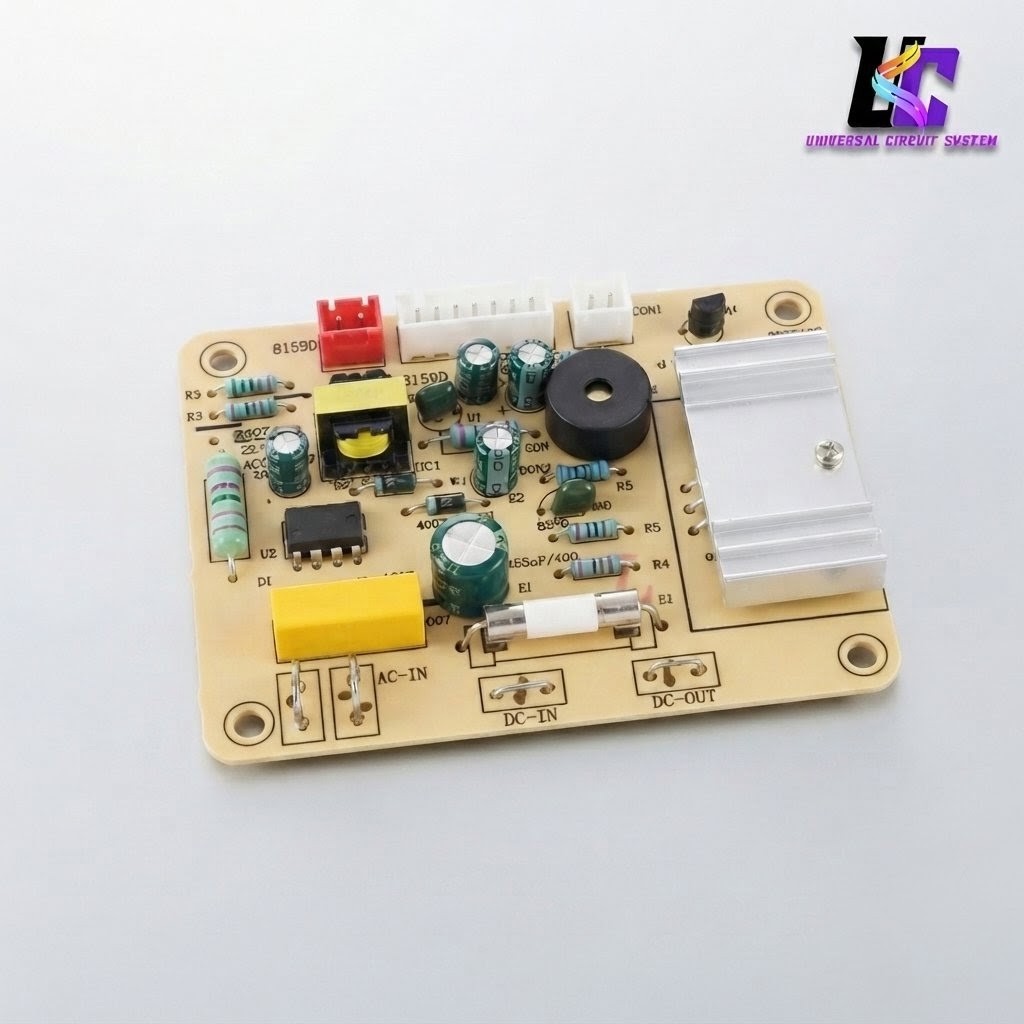

- Heavy-Duty Aluminum Heatsink: Outfitted with a multi-finned, premium aluminum heatsink that dramatically increases surface area to facilitate rapid thermal dissipation away from the high-power switching triacs/transistors, protecting components from thermal breakdown.
- Integrated Multi-Level Safety Protection: Built-in heavy-duty cartridge safety fuse and specialized X2 safety capacitors guard against sudden current spikes, line noise, and electrical surges.
- Onboard Logic Control Transformers & ICs: Integrates a compact flyback transformer setup paired with precision microcontroller chips to regulate stable low-voltage DC rails for display interfaces and user controls.
- Integrated Piezo Buzzer: Offers direct on-board audio status alerts, supplying acoustic confirmation for power state transitions, setting updates, and diagnostic notifications.
- High-Temperature Resistant Substrate: Constructed on a robust, premium-grade substrate engineered to endure high under-hood temperatures typical inside compact tabletop cookers and electric stoves.
220V 2000W–2200W Universal Infrared Cooker Motherboard / Replacement Circuit Board PCB
Technical Specifications
- Input Voltage: 220V AC (Standard Single-Phase) [1]
- Maximum Rated Power: 2000W – 2200W [1, 4]
- Application Compatibility: Induction cookers, infrared cookers, electric ceramic stoves, halogenic heaters [1, 4]
- PCB Form Factor: Medium footprint optimized for standardized tabletop cooker chassis sizes.
- Terminal Interfaces: High-current screw/solder terminals for AC Input and DC Power Distribution.
220V 2000W–2200W Universal Infrared Cooker Motherboard / Replacement Circuit Board PCB
Ideal For:
- Repairing dead or unresponsive electric cookers displaying power failures.
- Upgrading under-performing heating control systems.
- Industrial or academic prototyping involving high-wattage resistive heating cycles.

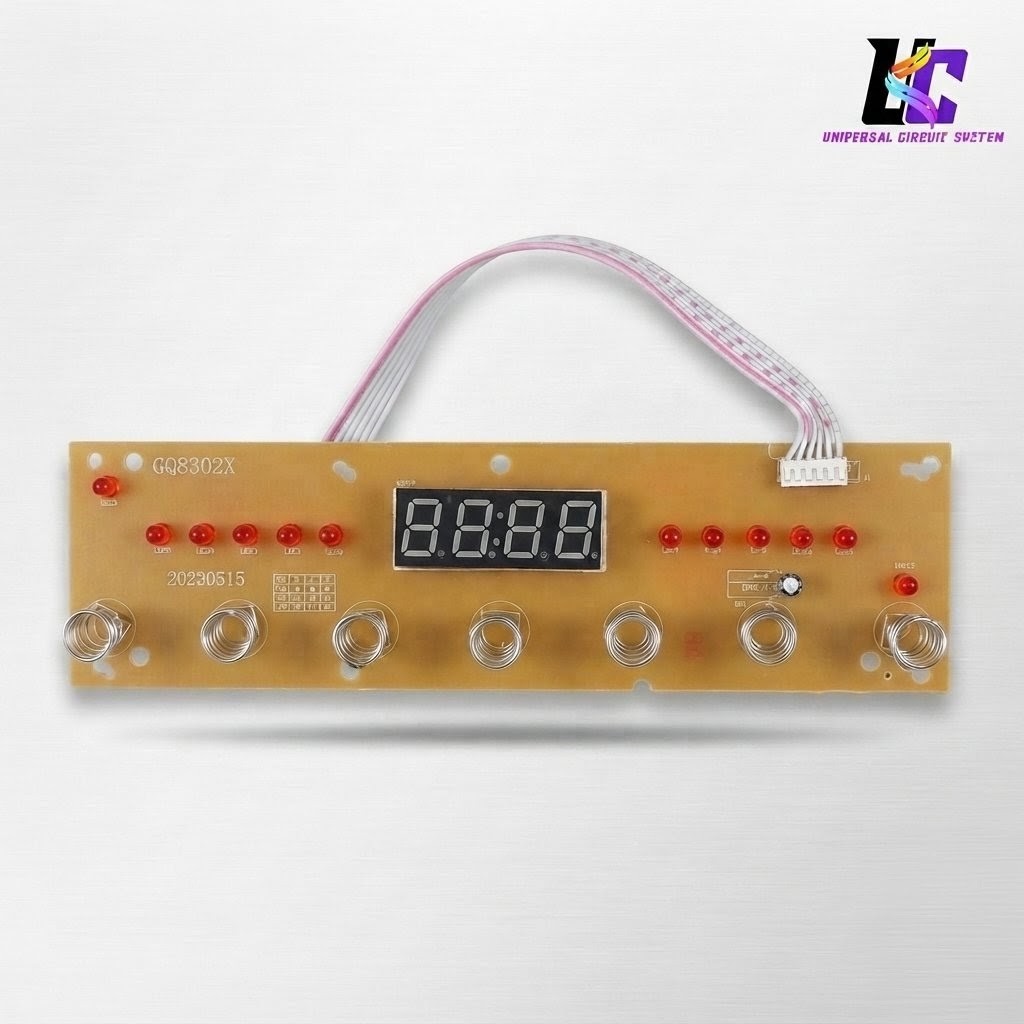

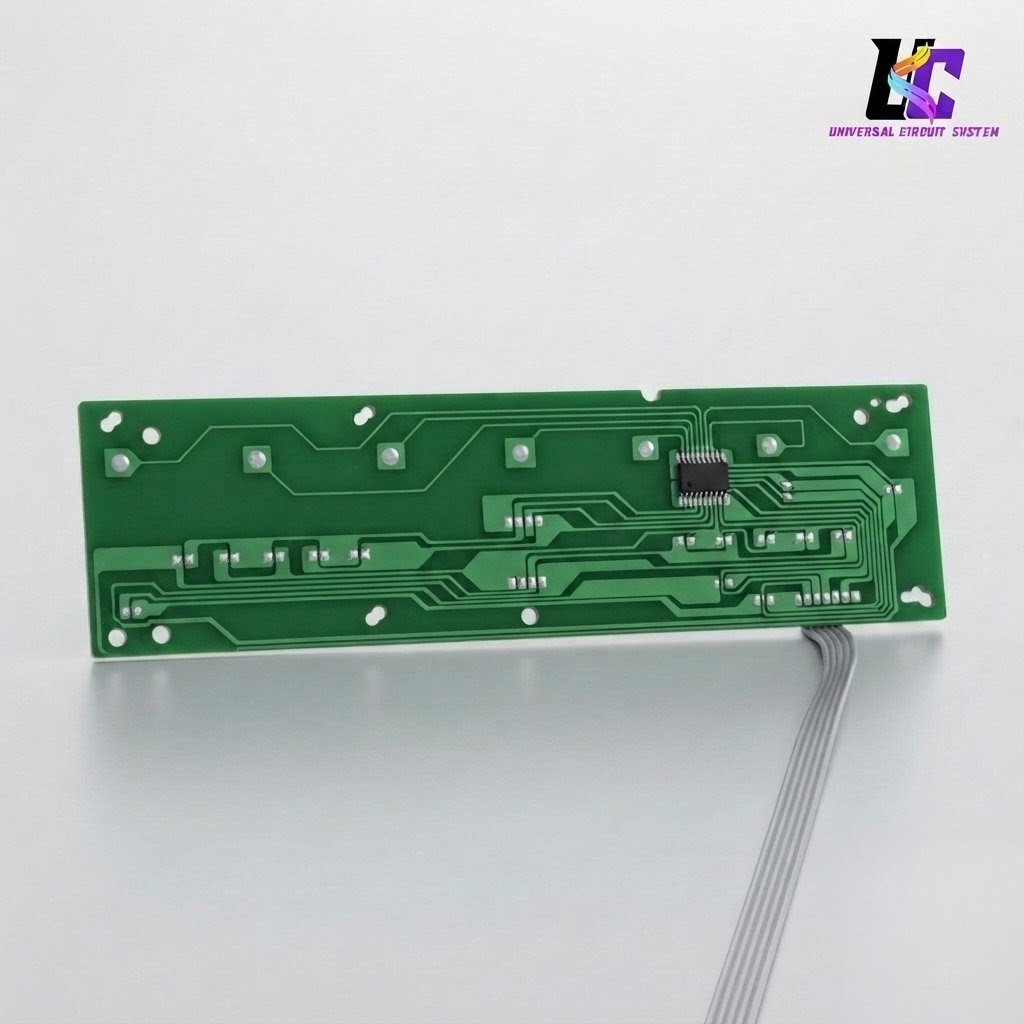

If you are sourcing this for a specific repair job, let me know what brand/model of appliance you are fixing, or if you need the corresponding digital button/touch control panel wiring diagram to match this motherboard!
