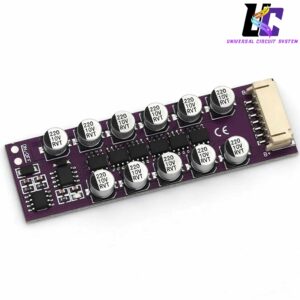

5S-6S Lithium Battery / Supercapacitor Capacitive Active Balancer Board
Roll over image to zoom in
৳ 700.00৳ 850.00 (-18%)
The 5S-6S 1.2A Capacitive Active Balancer Board is a high-efficiency energy transfer module designed to balance the voltage of multi-cell lithium battery packs (Li-ion, LiFePO4, LTO) or supercapacitors. Unlike passive balancers that waste energy as heat, this capacitive equalizer continuously shifts power from higher-voltage cells to lower-voltage cells at a high current of up to 1.2A.
The 5S-6S 1.2A Capacitive Active Battery Balancer and Equalizer Board is a highly efficient, intelligent energy management module engineered to optimize multi-cell lithium battery packs and supercapacitor banks. Unlike standard passive balancers that simply bleed off excess energy as heat through resistors, this board utilizes dynamic capacitive energy transfer to actively redistribute charge between cells, maximizing your battery pack’s total capacity, runtime, and overall operational lifespan.
🔋 High-Efficiency Active Energy Transfer
The module operates continuously across 5S to 6S battery configurations. When it detects a voltage variance between neighboring cells, the onboard high-precision capacitive circuits dynamically shift energy from the highest-voltage cells directly into the lowest-voltage cells.
- Balancing Current: Delivers an impressive balancing current of up to 1.2A, depending on the voltage differential between cells.
- Precision Equalization: Operates relentlessly until cell voltages are balanced to within a strict 30mV (0.03V) threshold.
- Lossless Optimization: Transfers raw power rather than burning it off, which keeps the battery pack running cooler and saves valuable amp-hours.
🛠️ Universal Chemistry & Hardware Compatibility
This balancer is a highly versatile tool for power system developers, offering broad compatibility with almost all major battery chemistries and energy storage systems:
- Supported Battery Types: Works seamlessly with Li-ion (ternary lithium), LiFePO4 (Lithium Iron Phosphate), and LTO (Lithium Titanate) cells.
- Supercapacitors: Can be deployed to balance large-scale supercapacitor banks to ensure even charging and prevent over-voltage degradation.
- Onboard Switch Pads: Features a specialized ON/OFF solder pad interface that allows makers to add a hardwired toggle switch to put the balancer into an ultra-low-consumption sleep mode when stored long-term.
🔌 Complete Plug-and-Play Wire Harness

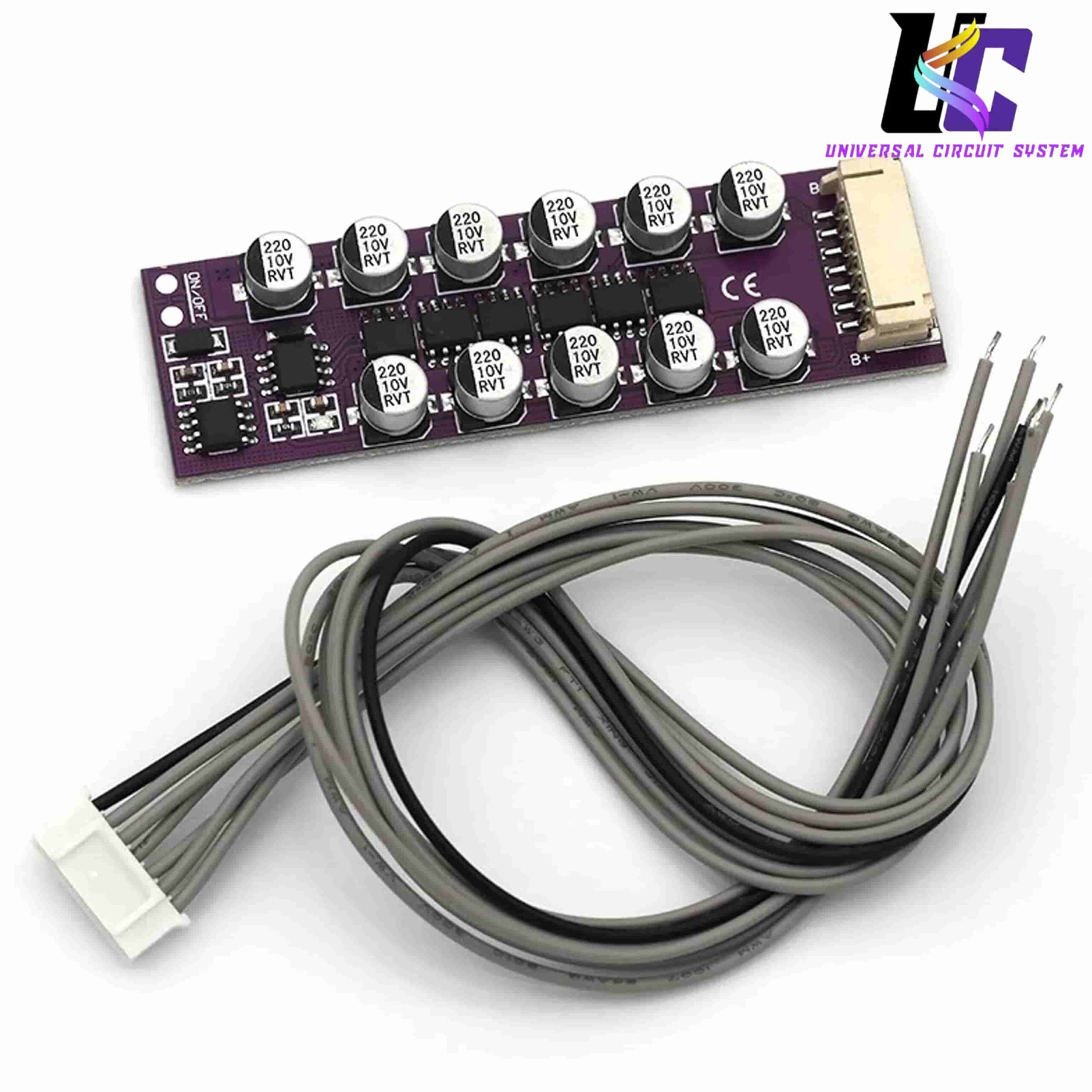

The package includes a custom-keyed, multi-pin terminal block socket pre-installed on the edge of the PCB. It comes bundled with a flexible, high-temperature multi-wire cable harness, allowing you to establish secure, clean tap-connections to each individual cell series connection block (B-, B1, B2, B3, B4, B5, B+) without cluttering your build.
💡 Multi-Industry Applications
- Electric Vehicles (EVs): Ensure maximum range and balanced discharge across custom-built e-bike, scooter, or golf cart battery packs.
- Solar & Renewable Storage: Keeps large 12V/24V off-grid solar storage banks perfectly level to prevent premature cell failure.
- DIY Power Banks & Tools: Upgrade or repair cordless power tool battery packs or heavy-duty portable power stations.
- High-Drain Robotics: Protect high-discharge multi-cell LiPo packs used in heavy robotic platforms or industrial RC vehicles.
