IP2312 Type-C 3A Rapid Charging Board Step-Down CC/CV Lithium Battery Charger Module

The IP2312 Type-C 3A Rapid Step-Down Charging Board is a highly integrated, fast-charging power management module designed for single-cell lithium polymer or 18650 batteries. Featuring a universal Type-C USB input port, this powerful synchronous buck charger efficiently converts 5V input power to safely charge batteries at up to a blazing 3A current. By utilizing advanced synchronous rectification technology, the module keeps power conversion efficiency exceptionally high, reducing thermal generation and eliminating the need for bulky heatsinks.

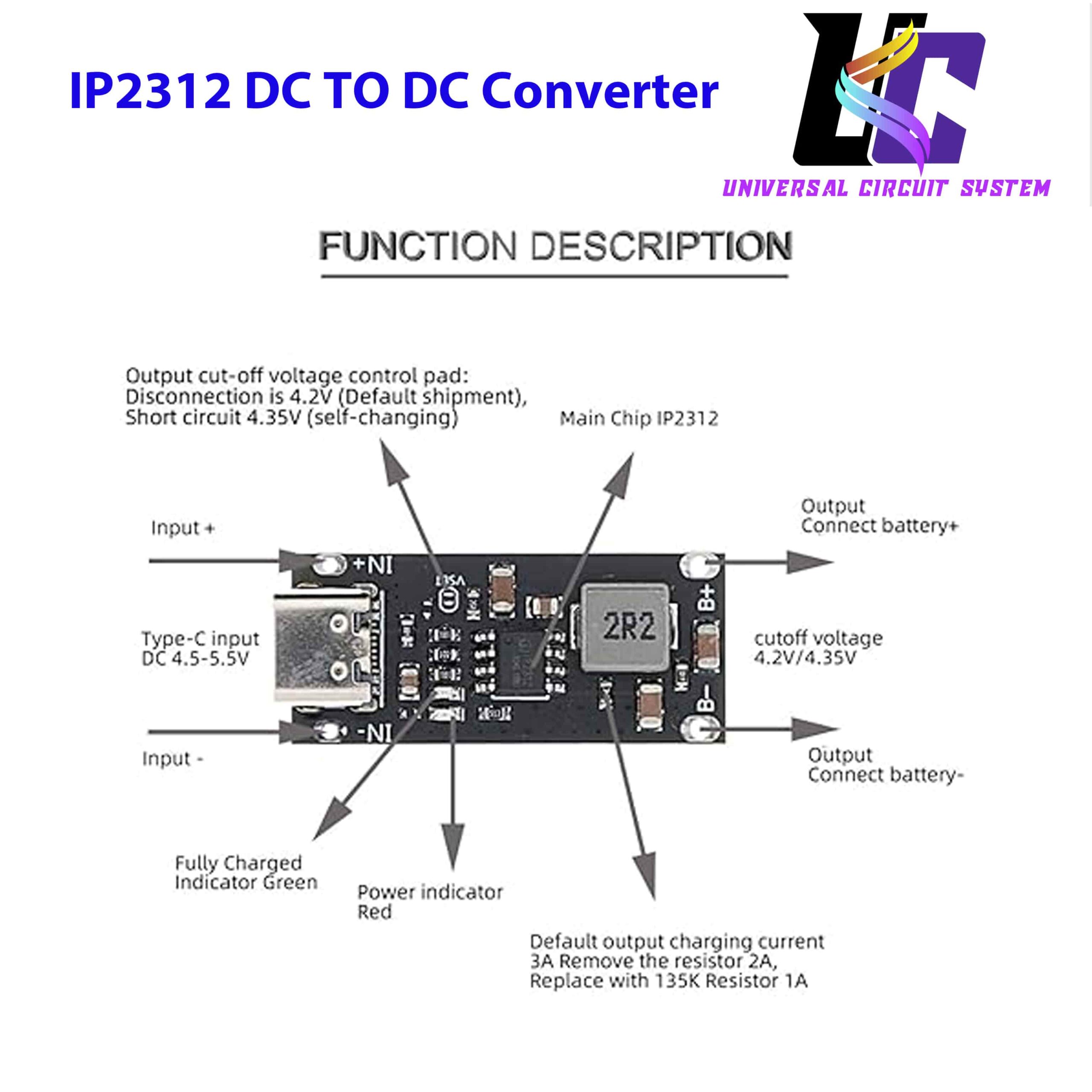

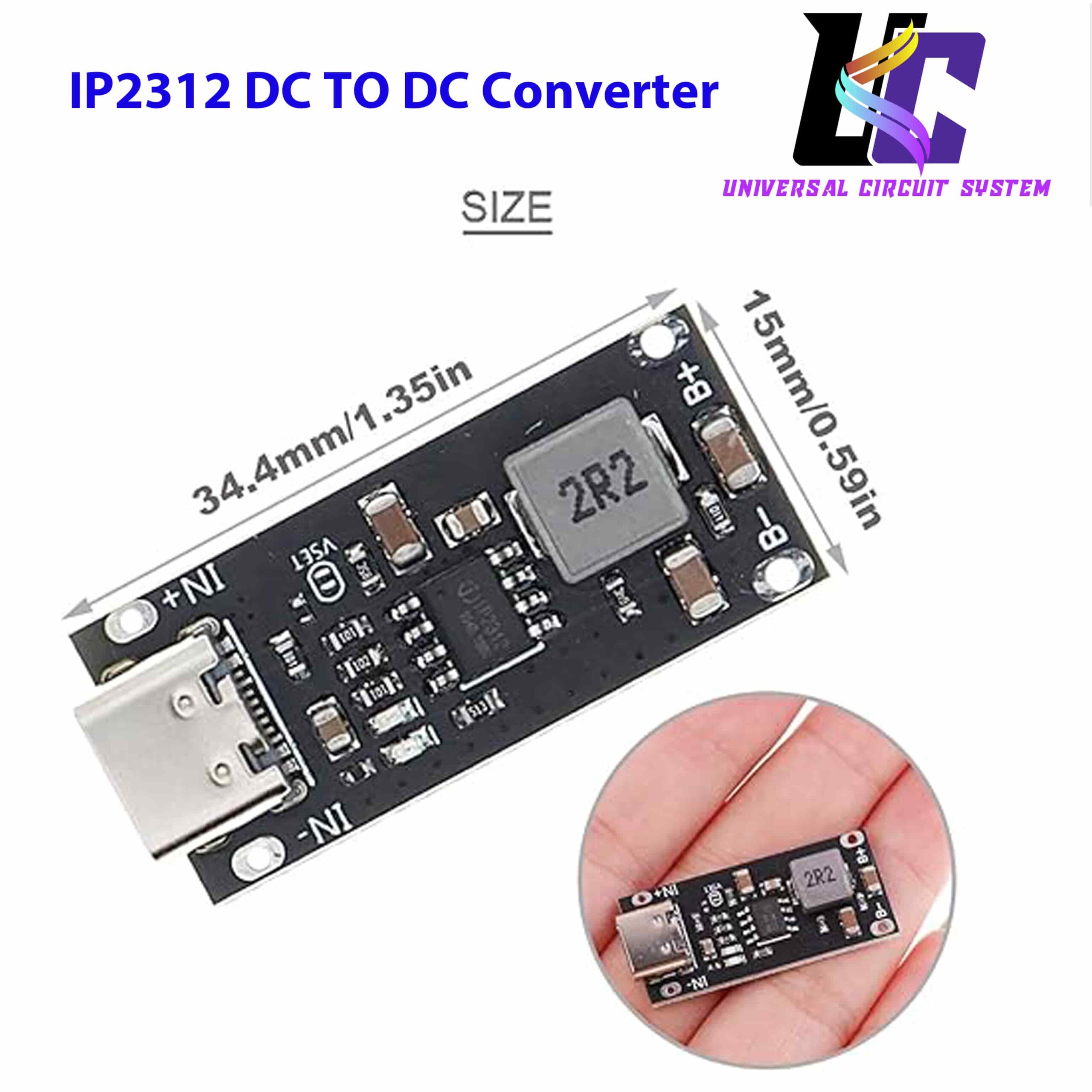

The module operates using a complete three-stage CC/CV (Constant Current/Constant Voltage) charging profile, ensuring safe, healthy, and complete battery replenishment. A standout feature of this board is the adjustable VSET jumper located on the back, allowing users to configure the termination voltage between standard 4.2V and high-voltage 4.35V cells. With clearly marked solder pads for direct input override (IN+/IN-) and battery connectivity (B+/B-), this micro-sized board is an ideal choice for custom power banks, DIY electronic projects, portable device modifications, and high-current battery recharging applications.

• 3A Fast Charging: Delivers up to 3A of continuous charging current to significantly reduce battery charge times.
• Smart CC/CV Algorithm: Manages the entire charge cycle safely with constant current, constant voltage, and trickle charge states.

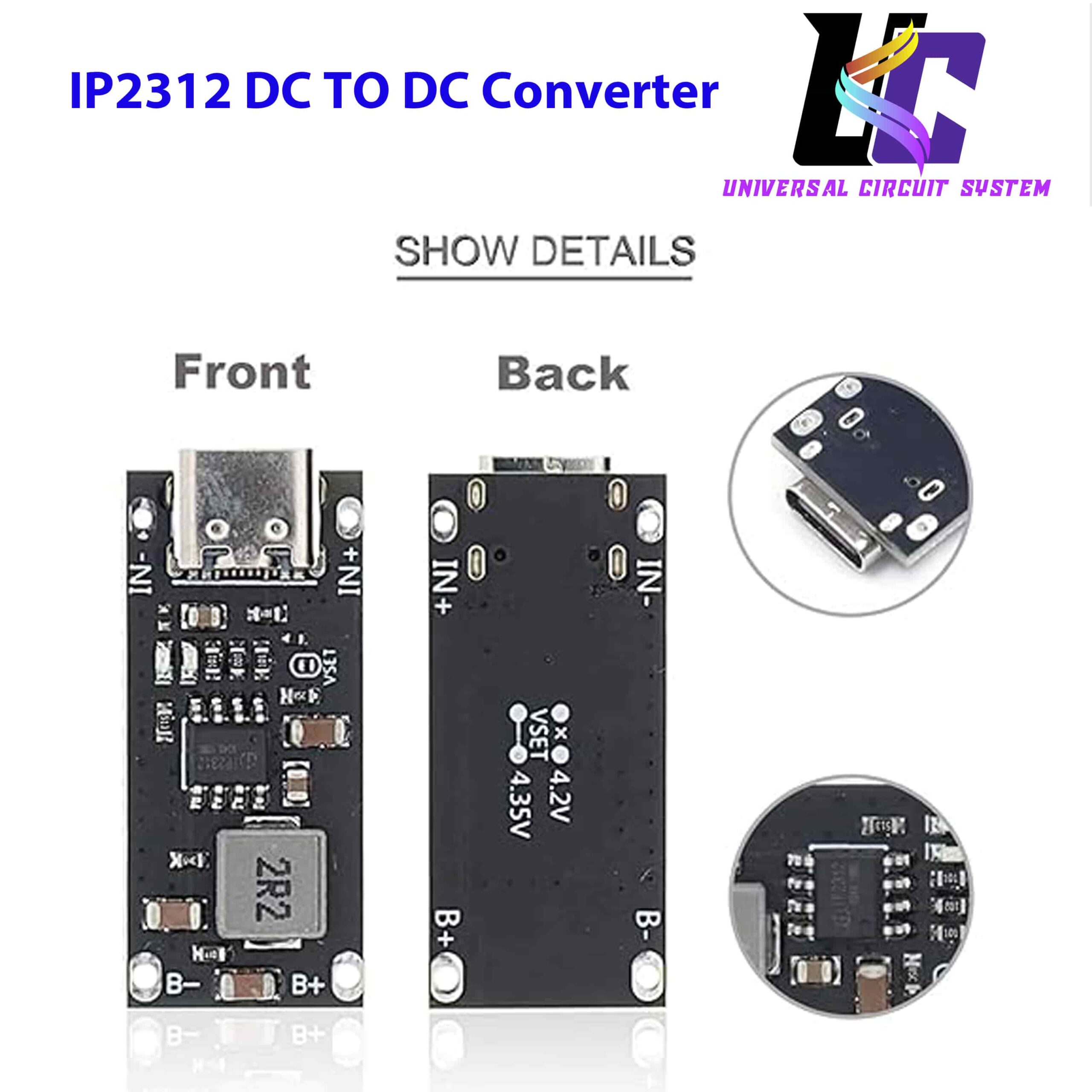

• Adjustable Voltage (VSET): Backside jumper pads allow hassle-free selection between 4.2V and 4.35V target termination.
• High Efficiency Buck Design: Synchronous rectification keeps conversion efficiency high and heat generation extremely low.
• Type-C Convenience: Features a robust Type-C USB receptacle alongside secondary breakout wire pads for versatile power input.

• Main Control Chip: IP2312
• Input Interface: USB Type-C / Solder Pads (IN+ and IN-)
• Input Voltage: DC 5V
• Maximum Charging Current: 3A (Automatically adjusts based on input capability and battery temperature)
• Output Voltage Options: 4.20V / 4.35V (Configurable via VSET jumper pads)
• Efficiency Rating: Up to 93% efficiency during peak operation
• Indicators: Dual onboard LED status pads for full charge monitoring
