Mini Router / ONU UPS Circuit Board Power Supply Module
Roll over image to zoom in
৳ 200.00৳ 250.00 (-20%)
- Multi-Rail Output: Delivers simultaneous 5V, 9V, and dual 12V DC outputs via four independent barrel jacks to power your entire networking setup.
- Zero-Latency Backup: Provides seamless, instant switching to battery power during outages, preventing router reboots and network disconnections.
- High Compatibility: Specifically designed to simultaneously back up a Wi-Fi Router, ONU/Modem, CCTV camera, and Media Converter.
- Engineered for 3S Batteries: Optimized for 3S Lithium-Ion battery packs (11.1V–12.6V) with onboard safety, surge, and thermal protection.
- Robust Design: Features heavy-duty aluminum heat sinks, dual status indicator LEDs, a heavy-duty input terminal, and a physical ON/OFF switch.
Would you like to know the exact dimensions of this PCB for an enclosure design?
Mini Router / ONU UPS Circuit Board Power Supply Module
Product Description

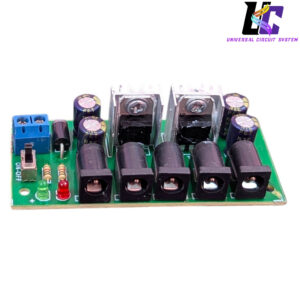

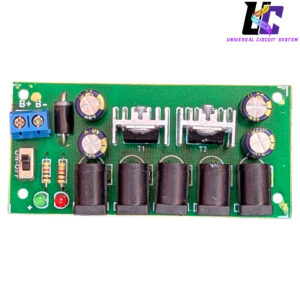

The Universal Mini Router & ONU DC UPS Power Supply Module (40W V2.6) is a high-efficiency, multi-rail backup power solution designed to ensure uninterrupted internet connectivity during sudden electrical outages. Functioning as a high-precision DC-to-DC distribution system, this board completely eliminates “Zero-Second Pulse” switching latency, preventing network drops and device reboots when transferring from mains power to battery backup. [1, 2, 3, 4]
Engineered with a space-saving, low-profile architecture utilizing all-surface-mount (SMD) components, it is widely utilized by DIY electronics enthusiasts and system integrators to build compact DIY mini-UPS backup systems for homes, offices, and remote security stations. [1, 2]
Mini Router / ONU UPS Circuit Board Power Supply Module
Key Performance Features
- Simultaneous Multi-Voltage Outputs: Outfitted with four independent DC barrel output jacks providing synchronized 5V, 9V, and dual 12V lines to run an entire networking stack off a single power bank source. [1, 2]
- No-Restart Switching: Implements a seamless energy transfer protocol that bridges utility power loss without resetting connected equipment. [1, 2]
- Comprehensive Safety Suite: Integrated onboard safeguards protect delicate electronics against short-circuits, high-voltage surges, over-voltage spikes, reverse polarity battery placement, and lightning/thunder protection. [1, 2]

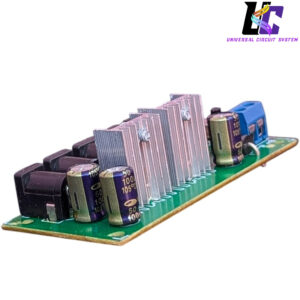

- Precision Thermal Dissipation: Employs dual vertical aluminum heat sinks clamped to high-load linear/switching regulators to maintain low operating temperatures under peak loads.
Mini Router / ONU UPS Circuit Board Power Supply Module
Technical Specifications Overview
- Maximum Output Capacity: Up to 40W – 47.5W nominal power delivery. [1, 2]
- Output Port Configuration:
- Input Charging Voltage: 12.6V DC to 13.0V DC (Requires a standard 2A – 5A power adapter). [1, 2]
- Battery Configuration Compatibility: Tailored specifically for a 3S Lithium-Ion / LiPo battery pack (11.1V nominal, 12.6V full charge cutoff, 10.5V low-voltage protection). [1, 2]
- Status Indicators: Built-in dual-state operation LEDs (Mains Power / Charging Status indicators) accompanied by an intuitive on/off toggle switch. [1, 2]
