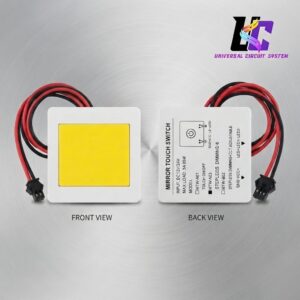

Mirror Touch Switch Module
Roll over image to zoom in
৳ 350.00৳ 400.00 (-13%)
Product Overview
The MTW Series Mirror Touch Switch is a sleek, low-voltage capacitive sensor designed for smart bathroom mirrors and vanity lighting. It mounts directly behind glass or acrylic, detecting touch inputs through the surface to provide a flush, modern user interface.
Key Features
- Through-Glass Sensing: Triggers reliably through 1mm to 5mm thick glass or acrylic panels.
- Dual-Color LED Backlight: Built-in illuminated panel serves as a visual guide in the dark, switching colors to indicate ON/OFF status.
- Low-Voltage Safety: Safe for high-moisture environments like bathrooms by operating on isolated DC power.
- Versatile Functionality: Available in standard ON/OFF, Stepless Dimming, or CCT Color-Adjustable models.
Specifications
- Voltage: DC 12V / 24V
- Max Load: 5A (Up to 60W)
- Mounting: Rear-adhesive behind etched/sandblasted glass
- Application: LED mirrors, backlit cabinets, and custom vanity builds
If you are adding this to a digital storefront or datasheet, let me know:
- What is the target word count or character limit for this description?
- Do you need a list of bulleted bullet points optimized for SEO keywords?
Mirror Touch Switch Module
Product Overview
The MTW Series Low-Voltage Mirror Touch Switch is an advanced, solid-state capacitive control module designed for integration into modern backlit smart mirrors, luxury vanity stations, and specialized glass cabinetry. Engineered to mount seamlessly onto the rear surface of a mirror, this switch utilizes proximity touch technology to detect user input effortlessly through raw, non-conductive glass or acrylic sheets. It provides an elegant, completely flush user interface that replaces mechanical toggles with a premium, sleek touch experience while completely isolating the user from internal electronics for maximum safety.
Mirror Touch Switch Module
Key Features & Performance Details
- High-Sensitivity Capacitive Touch: Employs advanced proximity sensing algorithms to deliver rapid, consistent response times. It triggers reliably when mounted behind glass or acrylic plates ranging from 1mm to 5mm thick.
- Intelligent Dual-Color Status LED Backlight: The integrated central rectangular panel serves as a functional visual anchor behind sandblasted or etched mirror glass. It shifts colors dynamically to indicate current system states (typically glowing crisp white or amber while idle, and cool blue when activated) for easy navigation in completely dark environments.
- Low-Voltage Circuit Isolation: Operates exclusively on low-voltage DC currents, establishing a total safety barrier between standard household mains voltage and wet areas such as bathrooms or washrooms.
- Universal Multi-Variant Architecture: Built on a unified, high-durability housing shell that supports multiple feature footprints:
- MTW-A01: Simple, reliable Direct ON/OFF Toggle control.
- MTW-A03: Built-in memory micro-controller supporting Stepless Dimming (hold down to smoothly sweep from 10% up to 100% brightness level).
- MTW-B02: Advanced CCT Dynamic Adjustment, enabling the user to effortlessly transition back and forth between crisp daylight (cool white) and comfortable ambiance (warm white) when paired with compatible dual-component light strips.
-
Mirror Touch Switch Module
-
Technical Specifications
Specification Parameter Metric Value Rating / Limit Input Operational Voltage DC 12V / 24V (Auto-adaptive matching system) Maximum Load Current 5 Amperes (5A Peak Continuous Rating) Maximum Total Power Output 60 Watts (60W Peak Load Threshold) Supported Penetration Thickness 1mm – 5mm Glass, Mirror, or Acrylic substrate sheets Wiring Layout Connections Integrated 4-Wire Polarized Input/Output Lead Interface Core Operational Functions Toggle Switch / Smooth Dimming / Color Temperature Transition -
Mirror Touch Switch Module
-
Installation & Application Notes
This module is intended for custom DIY or industrial OEM assembly. To mount it successfully, a small area on the reflective back coating of the glass mirror must be precisely sandblasted, chemically etched, or laser-ablated to allow the dual-color backlight to shine forward clearly. The device is secured flat against the glass using specialized neutral-cure electronic silicone or double-sided industrial adhesive tape. Ensure all input power sources are strictly regulated and safety-fused to 12V/24V DC lines to protect internal control microchips from raw line surges.To help tailor this description or plan your build:- Are you using this for a retail product listing or a personal DIY build guide?
- Do you need an explicit pinout description for the wire harnesses shown?
