NEMA 17 Stepper Motor Mounting Bracket L-Shape Steel Support
Roll over image to zoom in
৳ 190.00৳ 230.00 (-17%)

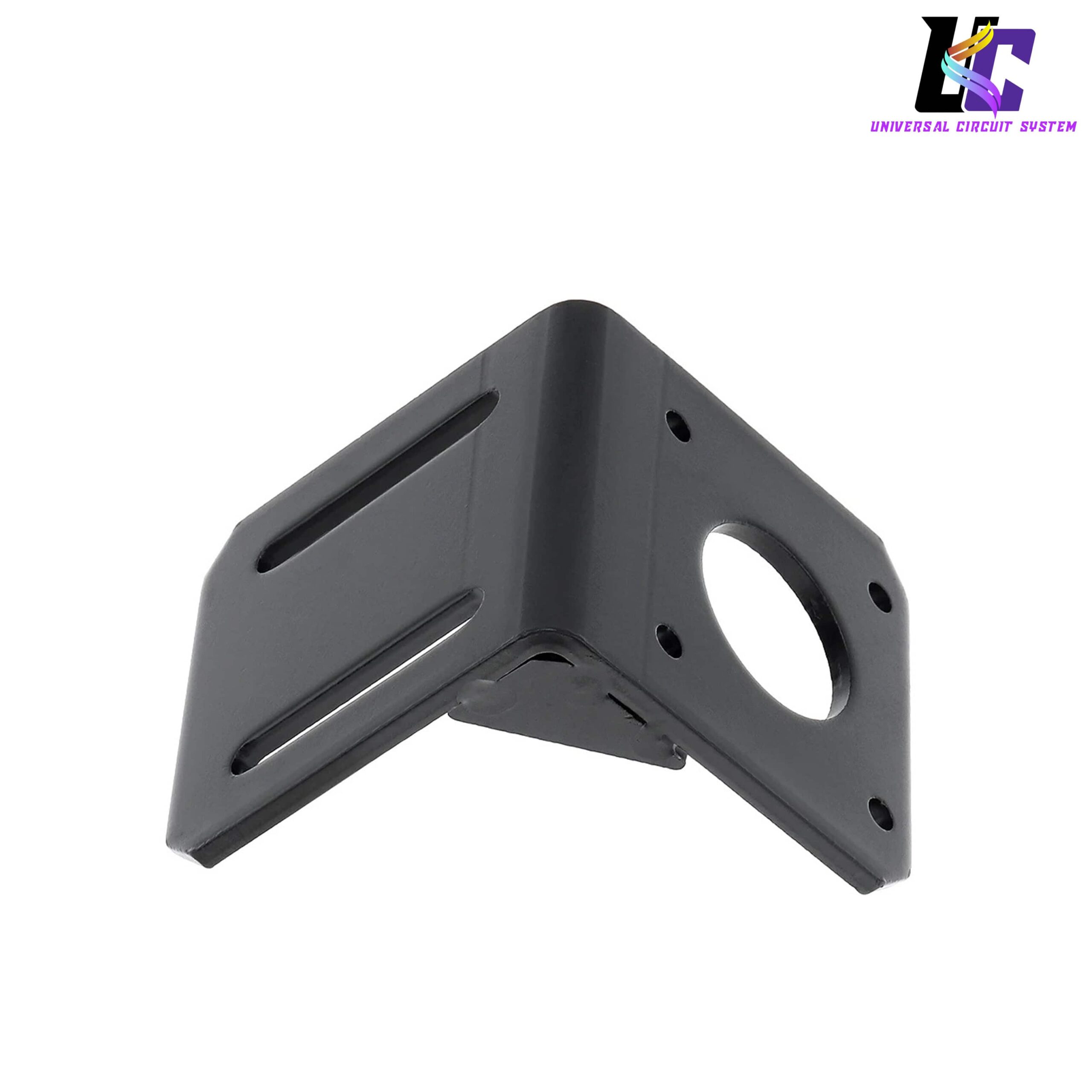

The NEMA 17 Stepper Motor Mounting Bracket is a heavy-duty, L-shaped steel support holder designed to provide rigid mechanical mounting for standard 42mm stepper motors. Crafted from high-strength alloy steel with a durable rust-resistant black finish, this bracket features a large central shaft clearance hole and a 4-hole pattern perfectly matched to NEMA 17 faceplates. The base plate features elongated adjustment slots, allowing users to easily slide and fine-tune motor position for optimal belt or gear tensioning. The package comes complete with a hardware pack containing 4 mounting bolts, 4 long chassis screws, and 4 matching hex nuts—making it an essential mechanical bracket for DIY 3D printers, CNC routers, and heavy-duty robotics.
Product Overview
The NEMA 17 Stepper Motor Mounting Bracket is a heavy-duty, L-shaped mechanical support holder engineered to provide rock-solid, vibration-free mounting for standard 42mm stepper motors [context]. It serves as a structural framework component in precise motion control systems, securely locking the motor faceplate against your main chassis. By providing a stable, rigid mount, it prevents flexing, misalignment, and mechanical drift under high operational torque loads—making it an essential upgrade or replacement block for high-precision machinery.
High-Strength Material & Structural Engineering
- Premium Alloy Steel Construction: Stamped out of dense, high-strength industrial alloy steel, the bracket is built to withstand strong rotational twisting forces without bending or warping over long operation periods.
- Rust-Resistant Black Powder Coating: The entire bracket is treated with a durable, anti-corrosion matte black powder coating. This protective layer shields the raw steel from oxidation, workshop humidity, and chemical abrasion while providing a sleek aesthetic.
- Reinforced Gusset Support Walls: The internal right-angle bend is reinforced with deep, stamped structural gussets on each flank. These side webs significantly increase structural stiffness and distribute mechanical stresses evenly across both planes.
- Precise Faceplate Clearance Layout: The vertical mounting plate features an oversized central clearance hole designed to accommodate extended motor shaft bosses and integrated bearing protrusions smoothly. This is flanked by a 4-hole pattern precision-stamped to match NEMA 17 standard layouts.
Ergonomic Positional Tuning Base
The lower horizontal mounting flange is engineered with multi-slot versatility to simplify complex mechanical alignment:
- Elongated Adjustment Tracks: The base features two long, parallel mounting slots instead of static round holes. This slide-track design allows builders to slide the entire motor assembly smoothly backward or forward to dial in the perfect timing belt tension or gear mesh mesh without needing to drill new chassis holes.
Complete Hardware Installation Kit
To minimize assembly time and eliminate extra hardware store trips, the bracket comes pre-bundled with a complete set of high-tensile carbon steel fasteners:
- 4× Short M3 Faceplate Bolts: Specifically measured to thread cleanly into your NEMA 17 motor’s front holes without bottoming out against internal electrical coils.
- 4× Long Chassis Screws: Extended machine screws designed to bolt the lower slotted base firmly to aluminum extrusions, wood frames, or metal baseplates.
- 4× Matching Hex Nuts: Low-profile retention nuts to securely clamp the chassis screws in place under continuous vibration.
Common Field Applications
- DIY 3D Printers: Anchoring X, Y, and Z-axis drive motors onto custom RepRap, Prusa, or CoreXY frames.
- Desktop CNC Routers & Laser Cutters: Securing precise drive actuators to move cutting heads smoothly along heavy guide rails.
- Custom Desktop Robotics: Providing rigid shoulder, elbow, or base pivot brackets for multi-axis robotic arms.
- Automated Scientific Equipment: Fabricating custom linear camera sliders, laboratory fluid dispensers, and automated material handling grids.
