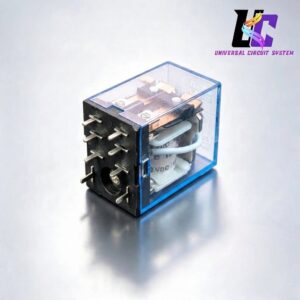

Omron Relay MY2N-J DC 12V Coil – DPDT 5A 125/250VAC (MY2NJ/MY2N Compatible)
Roll over image to zoom in
৳ 140.00৳ 200.00 (-30%)

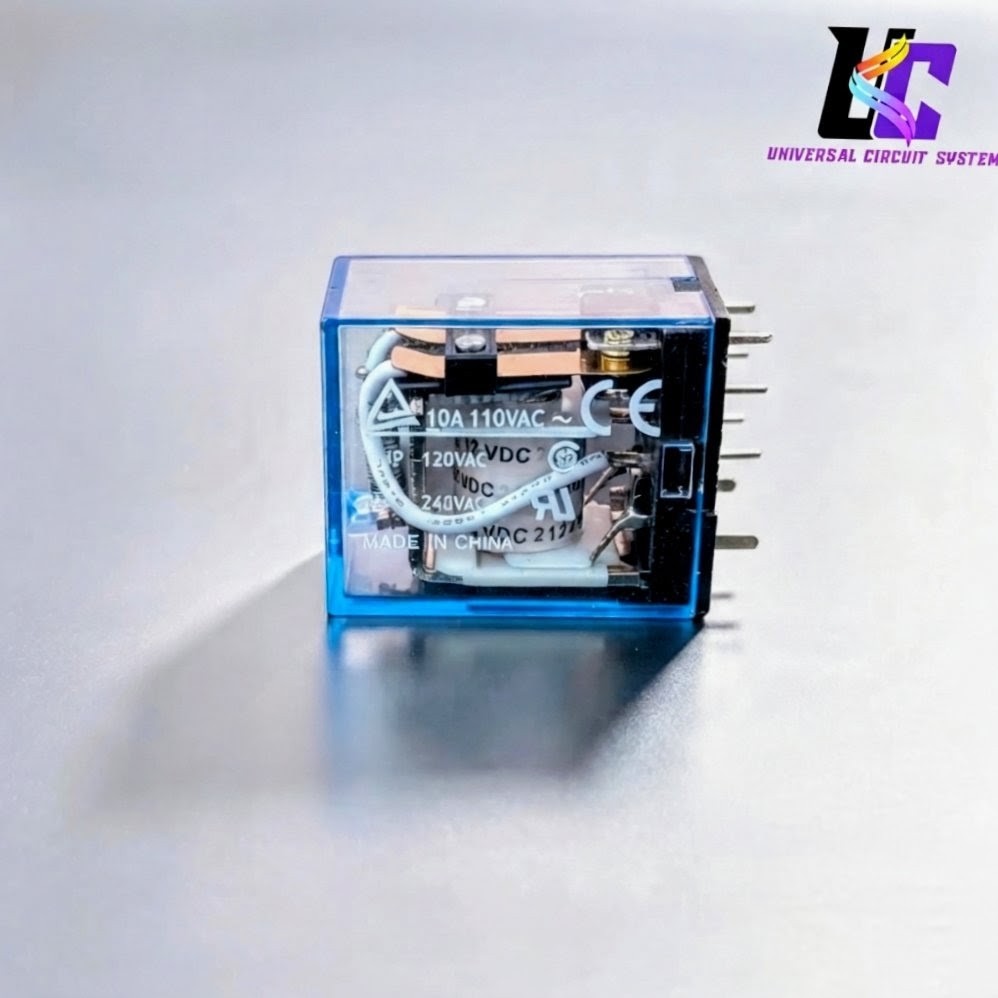

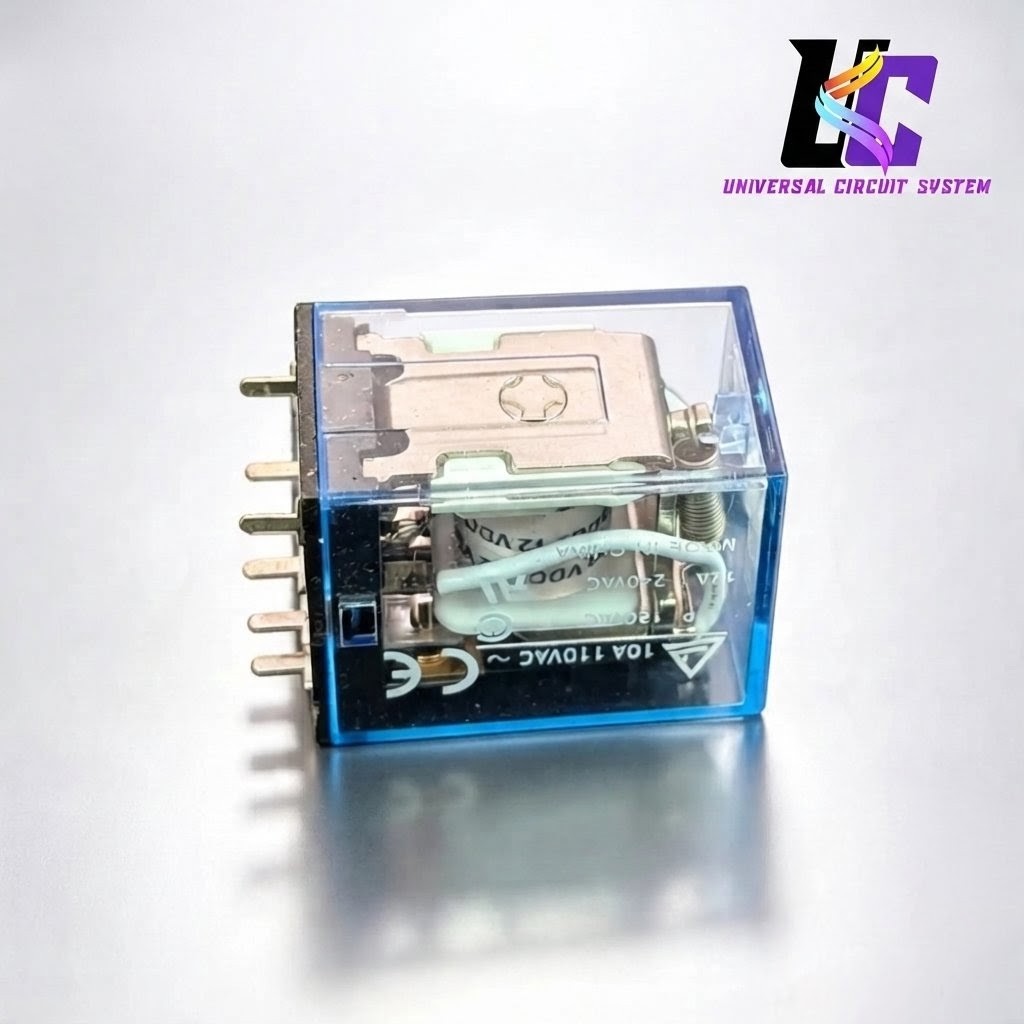

General Purpose Mini Power Relay (DPDT, 8-Pin, 10A)
Product Overview
This Premium 8-Pin Electromagnetic Power Relay is a reliable, high-performance switch engineered for industrial automation, HVAC controls, and custom electronics. Featuring a Double Pole Double Throw (DPDT) configuration, it allows an isolated low-power signal to simultaneously manage two independent high-power circuits.
Its transparent, flame-retardant “glass” housing provides immediate visual feedback of the internal mechanics, contact conditions, and coil status, significantly simplifying maintenance and diagnostic troubleshooting.
Key Highlights
- Dual-Circuit Switching: DPDT configuration (2NO + 2NC / 2 Form C) manages two lines at once.
- High Power Capacity: Robustly handles electrical contact loads up to 10A at 240VAC/110VAC or 10A at 28VDC.
- Plug-and-Play Design: Standard 8-pin array ensures a secure, solderless fit into matching DIN rail socket bases for rapid deployment.
- Long-Lasting Contacts: Premium silver alloy contacts resist arcing and oxidation to maximize the switch’s operating lifespan.
If you are incorporating this into an upcoming project, please let me know:
- Your system’s required coil activation voltage (such as 12VDC, 24VDC, or 220VAC)?
- If you need a matching 8-pin DIN rail mounting socket added to the description?
- The type of load or equipment you plan to switch?
High-Performance General Purpose Mini Power Relay (DPDT, 8-Pin, 10A)
Product Overview
This Premium 8-Pin Electromagnetic Power Relay serves as a reliable and highly efficient electrical switch designed for automation, control circuits, and industrial machinery application. Featuring a Double Pole Double Throw (DPDT) contact configuration, it allows you to control two independent electrical circuits simultaneously using a single low-power control signal.
Engineered for longevity and safety, the relay is housed in a clear, flame-retardant transparent casing. This “glass case” design offers real-time visual inspection of the internal mechanics, coil status, and contact positioning without needing to disconnect the device, greatly simplifying system diagnostics and maintenance.
Omron Relay MY2N-J DC 12V Coil – DPDT 5A 125/250VAC (MY2NJ/MY2N Compatible)
Key Structural & Electrical Attributes
- Dual-Pole Control Architecture: Equipped with a 2NO + 2NC (2 Form C) contact profile. It provides complete versatility to swap between normally open and normally closed operations across two discrete electrical lines.
- Heavy-Duty Switching Capacity: Robustly designed to handle substantial power thresholds up to 10A at 240V AC / 110V AC or 10A at 28V DC, making it fully compatible with both alternating and direct current loads.
- High-Conductivity Alloy Contacts: Built utilizing premium silver alloy contacts that effectively combat oxidation, minimize electric arc erosion, and guarantee minimal electrical resistance over prolonged lifecycles.
- Plug-In Pin Geometry: Features durable, thick alloy terminal pins specifically sized for secure insertion into matching 8-Pin DIN Rail Socket Bases (such as PYF08A styles). This eliminates direct soldering stress and facilitates effortless drop-in replacements.
- Integrated Status LED (Model Specific): Incorporates a built-in miniature light-emitting diode (LED) that illuminates instantly upon coil excitation, providing quick optical feedback for active control loops.
-
Omron Relay MY2N-J DC 12V Coil – DPDT 5A 125/250VAC (MY2NJ/MY2N Compatible)
-
Technical Parameters & Specifications
Parameter Specification Contact Configuration DPDT (2 Form C / 2NO + 2NC) Max Switching Current 10 Amperes Maximum Switching Voltage 250V AC / 30V DC Contact Resistance ≤ 50 mΩ Insulation Resistance ≥ 100 MΩ (at 500V DC) Dielectric Strength 1500V AC (between coil and contacts, 1 min) Mechanical Life Expectancy ≥ 10,000,000 Operations Electrical Life Expectancy ≥ 100,000 Operations (at rated load) Housing Material Clear, high-impact polycarbonate plastic Mounting Compatibility 8-Pin Plug-in Socket / Surface Mount Base -
Common Industry Applications
-
- Industrial Automation: Widely used within electrical control panels, PLC output staging, processing machinery, and motor control centers.
- HVAC Systems: Efficiently toggles fans, dampers, compressors, and heating elements via low-voltage thermostats.
- Power Management: Acts as an intermediate signal booster or isolated switch in power distribution grids and backup generator control boards.
- Custom Electronics: Frequently integrated into DIY smart home automation setups, security alarms, and micro-controller interfacing setups (Arduino/Raspberry Pi control arrays via driver transistors).
Omron Relay MY2N-J DC 12V Coil – DPDT 5A 125/250VAC (MY2NJ/MY2N Compatible)
If you plan to source this unit, please let me know:-
- Your exact required coil control voltage (e.g., 12V DC, 24V DC, or 220V AC)?
- If you also require a matching DIN rail mounting socket to complete your layout?
- If you need the exact internal schematics mapped out for your wiring diagrams?
-
