Panel Mount USB Type-C Female Waterproof Charging Port with Wire Leads
Roll over image to zoom in
৳ 20.00৳ 40.00 (-50%)
This is a Panel Mount USB Type-C Female Charging Port with Wire Leads, a rugged connector socket engineered for adding modern power interfaces to custom enclosures and project cases. It features a female USB-C receptacle housed inside a heavy-duty flange with dual integrated screw-mounting ears for secure mechanical installation. It comes pre-wired with flexible red and black pigtail leads, making it an excellent power input solution for DIY devices, custom 3D-printed enclosures, and electronic modifications.

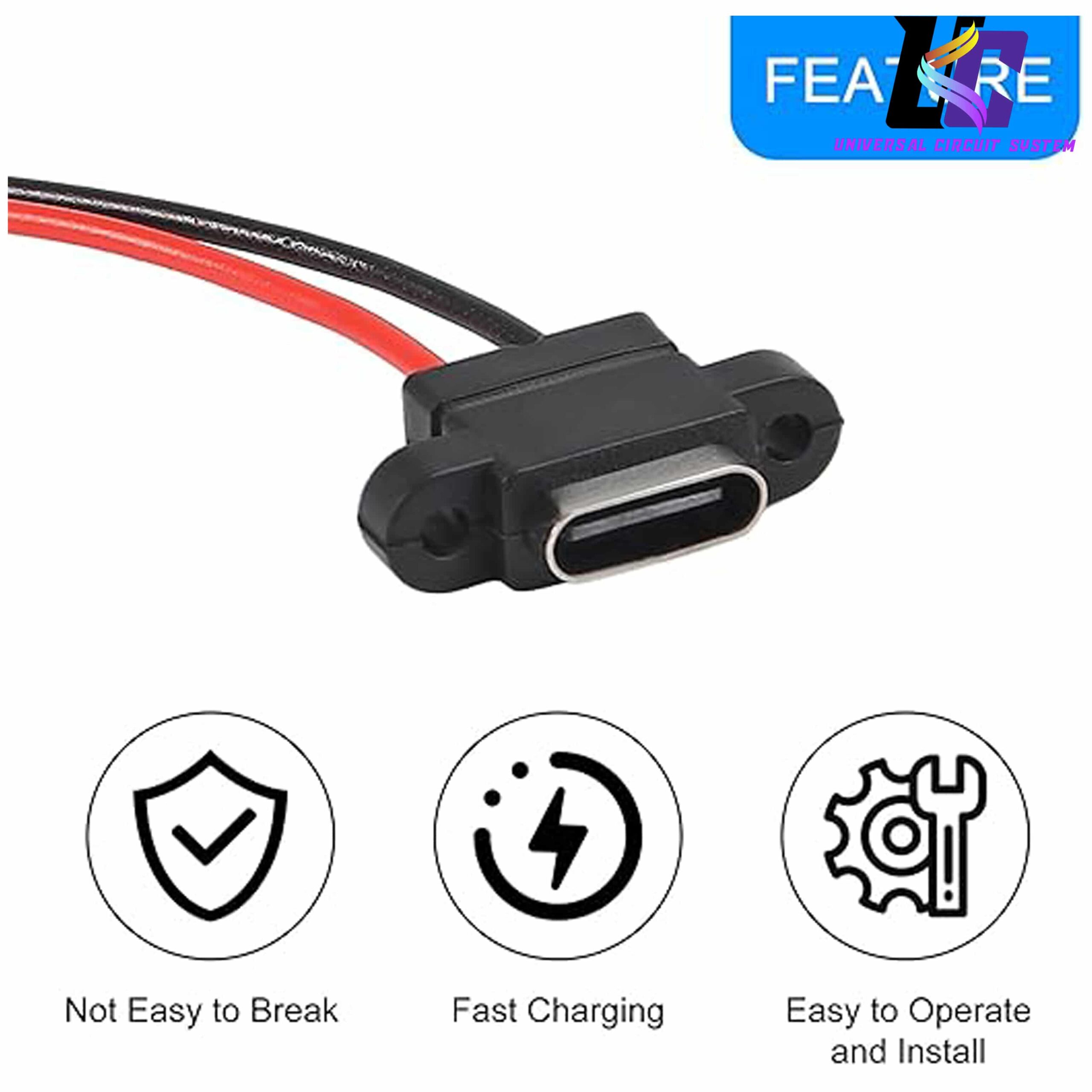

The image shows a Panel Mount USB Type-C Female Power Socket with Pre-Wired Pigtail Leads, a rugged interface component engineered to integrate modern charging connections into custom project enclosures, instrument dashboards, and electronic consumer products.
Core Mechanical & Mounting Architecture
- Flanged Panel Mount Chassis: Features a molded heavy-duty polymer outer housing equipped with dual lateral mounting ears and pre-drilled screw ports, enabling flush bolt-on installation against panels or 3D-printed walls.
- Pre-Soldered Pigtail Leads: Streamlines circuit integration by extending a flexible two-wire tail from the rear of the potted connector block, eliminating the need to solder directly to fragile microscopic surface-mount pads.
- Reversible Female Receptacle: Houses a reinforced metal-shielded USB Type-C port that accommodates standard male USB-C cables inserted in any orientation.
Technical Performance & Safety Attributes
- Simplified Power Optimization: Utilizes a targeted 2-wire layout focused purely on power delivery rather than data processing lines, making it easy to map out basic electronic power paths.
- Polarity Standard Color-Coding: Employs standard electrical wire identification with a Red Wire for positive current DC line routing and a Black Wire for system grounding.
- Fast Charging Integration: Internally configured to support high-amperage power delivery (PD) and fast charging standards safely when backed by a compatible charging controller.
- Stress Resilience: Potted with rigid internal insulation compounds behind the port terminal window, preventing the core pins from caving in or flexing outward under frequent cable extraction forces.
Target Applications
- Custom Enclosure Manufacturing: Serving as the primary power input bulkhead for custom 3D-printed power banks, smart electronics cases, and DIY hobbyist assemblies.
- Automotive & Marine Retrofits: Upgrading older dashboards, instrument pods, or utility vehicles with modern 5V/12V USB-C fast-charging sockets.
- Consumer Electronic Maintenance: Replacing loose, broken, or outdated micro-USB barrel ports on Bluetooth speakers, portable lights, and handheld instruments.
