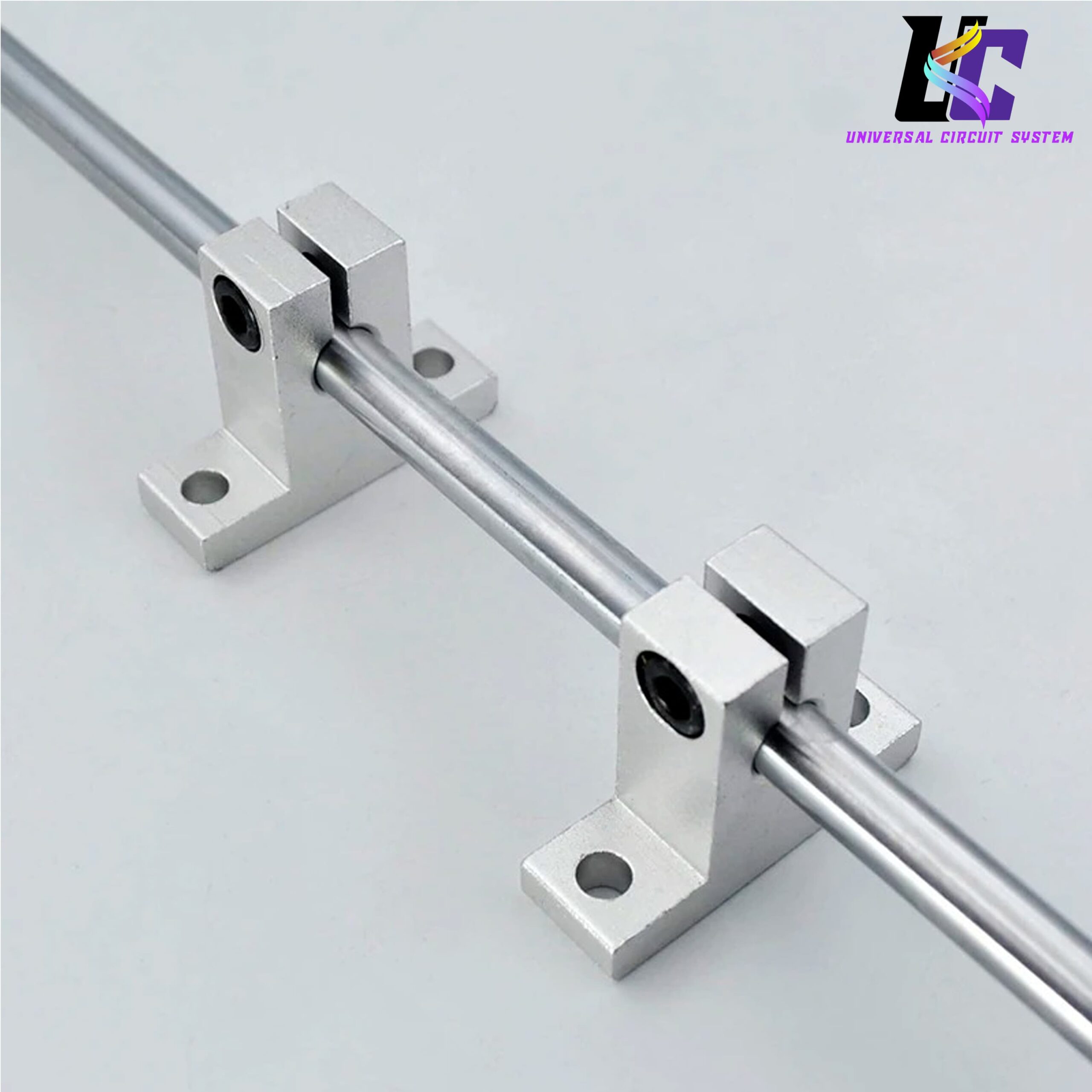

SK6 6mm Linear Rail Shaft Support Bearing Guide Block CNC Bracket
Roll over image to zoom in
৳ 250.00৳ 300.00 (-17%)
This SK6 6mm Linear Rail Shaft Support Bracket provides rigid, secure mounting for compact round linear guide shafts in small CNC machinery, 3D printers, and automated robotics. Precision-machined from high-strength aluminum alloy, it features an integrated split-collar clamping mechanism to lock the shaft firmly into place, along with two M5 base mounting holes to prevent structural shifting during rapid linear motion profiles.
SK6 6mm Linear Rail Shaft Support Bracket for Miniature CNC and 3D Printers
Overview
The SK6 Linear Shaft Support Bracket is a high-precision hardware component designed to secure, anchor, and stabilize standard 6mm round linear guide rails. Widely utilized in miniature CNC routers, compact 3D printers, laser engravers, and micro-robotics, this guide block provides a rigid, low-profile anchor point. It ensures your linear motion shafts stay perfectly aligned, preventing structural twisting or deflection during rapid carriage traversals.
Premium Machined Aluminum Construction
Each support bracket is manufactured from high-grade aluminum alloy, delivering an optimal balance of lightweight design, high tensile strength, and excellent corrosion resistance. The surface is cleanly machined and finished to resist scratching or wear in harsh workshop environments. Its solid block layout absorbs vibrational energy from moving components, maintaining system accuracy over long production cycles.
Secure Integrated Shaft Clamping
The bracket features an integrated split-top clamping mechanism. Instead of relying on crude set screws that can scratch or deform precision-hardened steel rails, the SK6 uses an adjustable tightening bolt slot at the top. Tightening this bolt closes the split collar smoothly around the shaft, distributing pressure evenly to lock the rail firmly in place with zero axial play or slippage.
Exact Dimensional Specifications
- Part Number Model: SK6
- Compatible Shaft Diameter: 6mm
- Total Bracket Height: 32.8mm
- Total Base Width: 42mm
- Top Block Width: 18mm
- Overall Profile Depth: 13.5mm
- Shaft Center Height: 20mm (distance from the mounting surface to the center of the shaft)
- Mounting Hole Specification: 2x M5 threaded bolt slots
Applications
- Main structural axis supports for custom DIY desktop CNC engraving and carving machines
- Precision Z-axis or X-axis rail guides for small-format, high-resolution FDM or SLA 3D printers
- Miniature linear motion tracks for automated laboratory equipment, medical devices, and sorting nodes
- Lightweight camera sliders, motorized linear actuator tracks, and custom hobby robotics linkages
