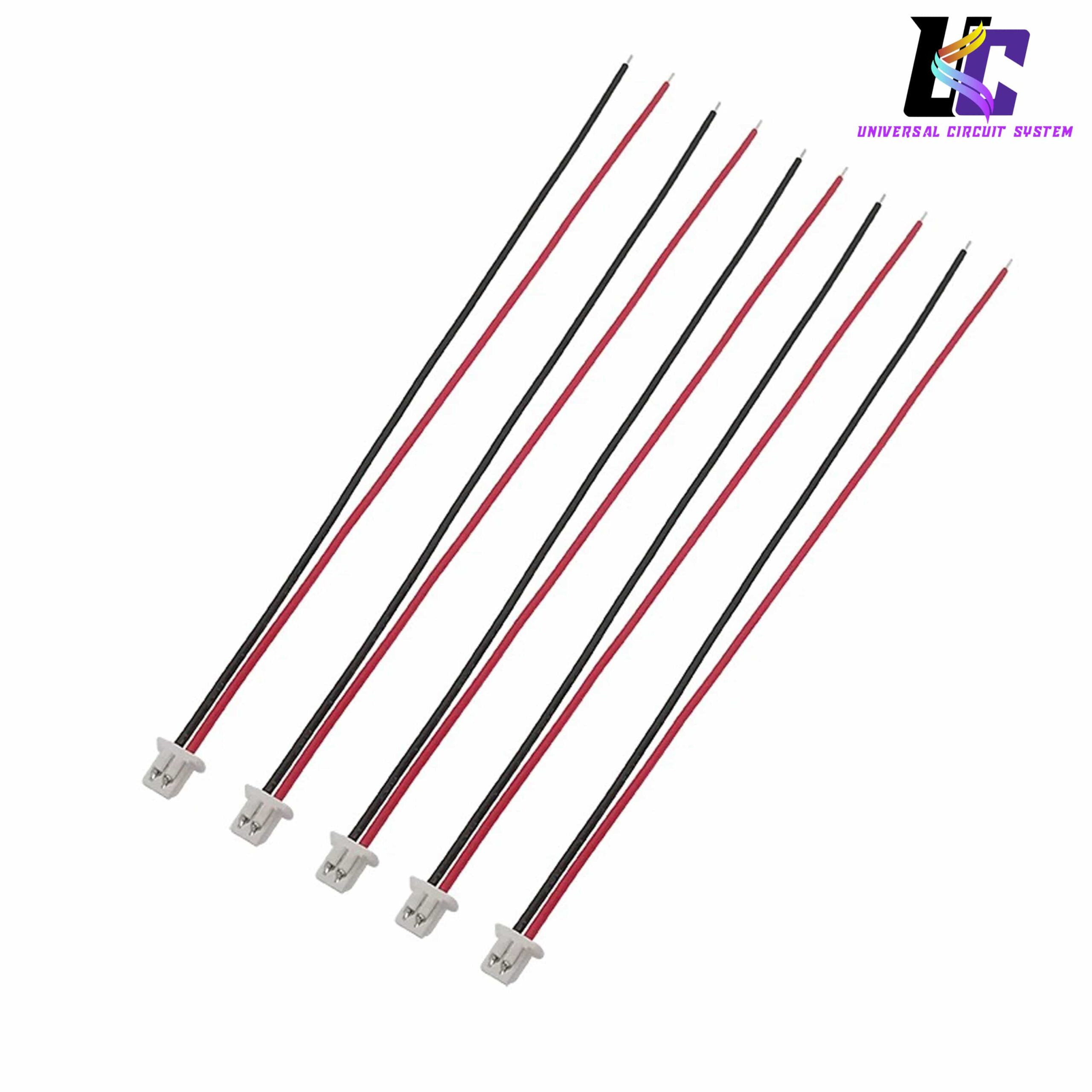

2-Pin Micro JST-PH 2.0mm Terminal Connector with Red & Black Wire
Roll over image to zoom in
৳ 7.00৳ 15.00 (-53%)
This is a premium 2-pin JST-PH micro connector cable featuring a 2.0mm ultra-compact pitch design. It comes pre-wired with a standard red and black dual-wire pigtail lead, pre-stripped at the tips for immediate solder installation. This micro-sized plug is widely used as a power interface for compact lithium-polymer (LiPo) batteries, mini RC indoor drones, and wearable DIY electronics projects.
Product Overview
The Universal Circuit System 2-Pin JST-PH 2.0mm Micro Connector Cable is a specialized, ultra-compact wire-to-board connector assembly designed for space-constrained electronics. Featuring a tight 2.0mm pin-to-pin spacing, this mini connector provides a reliable, low-resistance power link for lightweight devices. It is an industry-standard solution for temporary or quick-release electrical layouts, allowing users to safely connect and disconnect power sources without stressing delicate trace solder joints on mainboards.
Design & Build Quality
Engineered to streamline modern electronics manufacturing and hobby assembly:
- Polarized Friction-Locking Design: The miniature nylon plug body is explicitly keyed with side alignment grooves. This physical constraint prevents accidental backward insertion or incorrect alignment, protecting sensitive microelectronics from catastrophic reverse-polarity or short-circuit damage.
- Pre-Stripped & Tinned Pigtails: The cable comes pre-terminated with multi-strand flexible wires. The opposite ends are factory-stripped and dipped in premium lead-free tin alloy, ensuring immediate solder wetting when connecting to switches, boards, or power lines.
- Standard Dual-Wire Configuration: Built with an easy-to-track dual-color matrix—a Red Wire for positive (+) voltage distribution and a Black Wire for negative/ground (-) paths.
Technical Specifications
| Feature | Specification Details |
|---|---|
| Connector Series Profile | JST-PH 2.0 Standard Series |
| Pin / Pole Count | 2 Pins (Single Row Layout) |
| Pin Center Pitch | 2.00 mm (0.079 inches) |
| Wire Gauge Scale | 26 AWG or 28 AWG high-flexibility stranded copper |
| Current Carrying Limit | Rated for a continuous load of up to 2.0A AC/DC |
| Dielectric Working Voltage | Supports potentials up to 100V AC/DC |
| Housing Insulation Material | High-durability, flame-retardant PA66 Nylon |
Common Use Cases
- Ultra-Light LiPo Battery Packs: Serving as the standard charging and discharge port for single-cell (1S) lithium-polymer batteries used in micro indoor drones, tiny whoops, and RC park flyers.
- Wearable Tech & IoT Modules: Supplying compact power feeds to portable smart devices, fitness trackers, and miniature sensor modules like ESP32 or Adafruit Feather boards.
- Internal Peripheral Linking: Connecting secondary components within electronic enclosures, such as miniature 5V cooling fans, small piezo speakers, or indicator status LEDs.
