CCM5D DC Motor Speed Controller PWM 6V-30V 5A Digital Display Regulator Switch
Roll over image to zoom in
৳ 450.00৳ 500.00 (-10%)
This versatile CCM5D panel-mount DC motor speed controller delivers efficient PWM (Pulse Width Modulation) regulation across a wide DC 6V to 30V input range. Capable of supporting up to a 5A continuous current, it features a bright 3-digit LED digital display that cleanly tracks speed percentage from 0% to 100%. Equipped with an external wired adjustment potentiometer, an independent start-stop button switch, and a robust panel housing, it provides the ultimate user-friendly control station for custom laboratory pumps, industrial fans, miniature automation gear, and custom DIY electronic project builds.
If you want, tell me if you need help with:
- Writing a comprehensive, full product description
- Formatting bullet points optimized for e-commerce sites like Amazon or AliExpress
- Providing a wiring pinout overview to safely separate input power from the motor load
Product Description
The CCM5D Panel-Mount DC Motor Speed Controller is a high-performance, industrial-grade PWM (Pulse Width Modulation) regulator engineered to provide smooth, stepless speed adjustments for low-voltage DC motors. Supporting a versatile input range from DC 6V to 30V, this heavy-duty governor delivers up to 5A of continuous output current, safely handling motor loads up to 150W. Built with an integrated panel-mount bezel housing, it allows for a clean, professional finish on any enclosure or control dashboard.

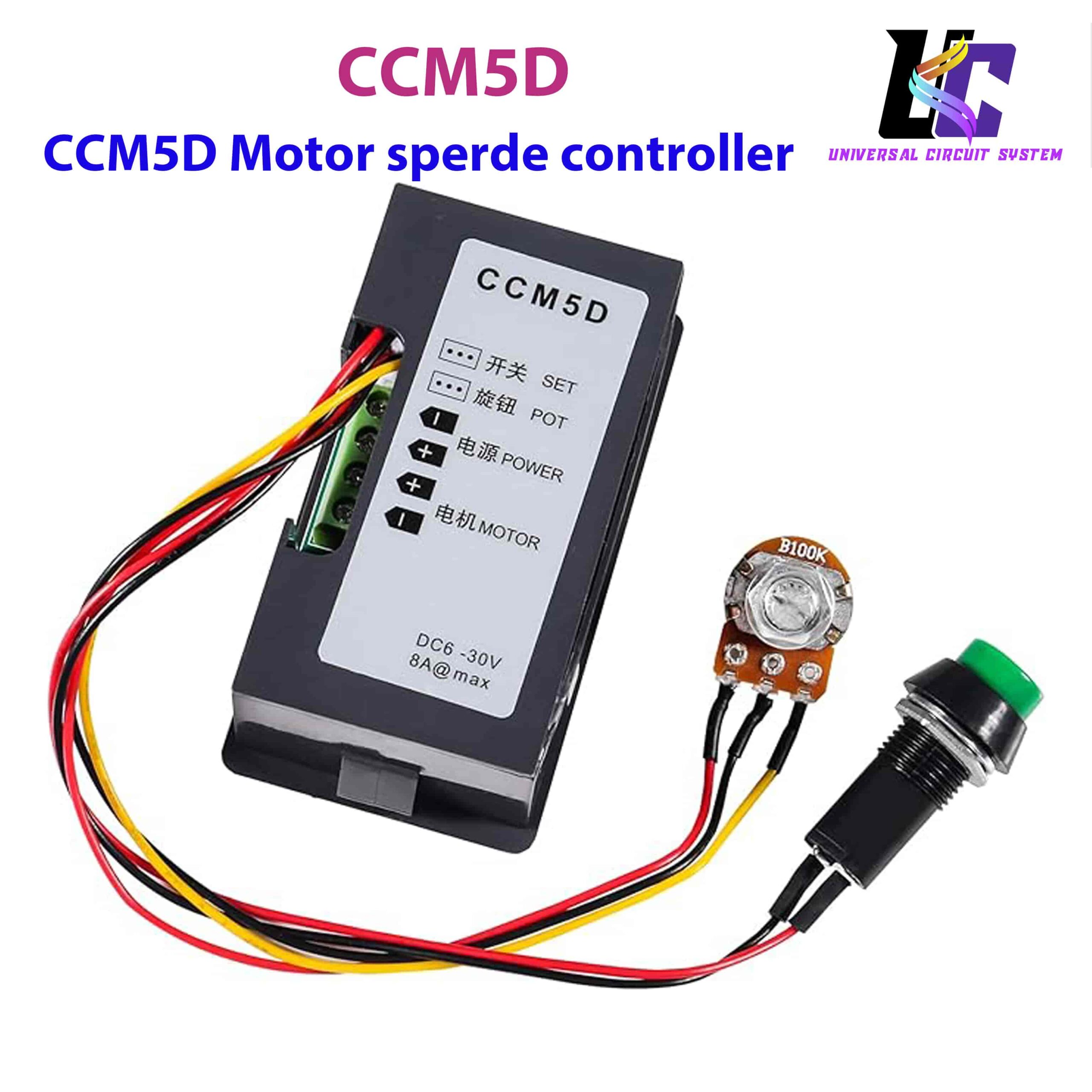

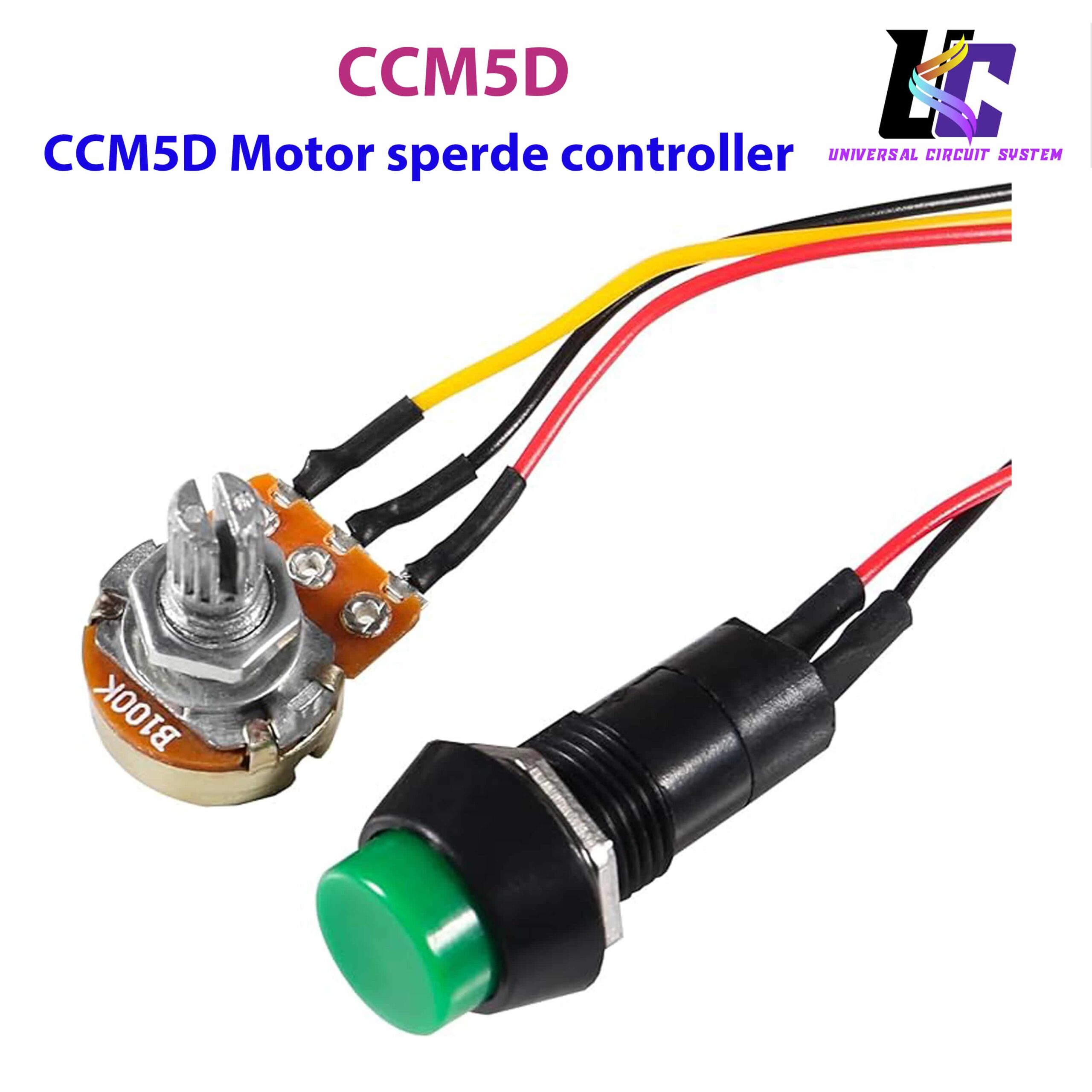

A key highlight of this controller is its high-visibility, 3-digit red LED digital display. Instead of tracking erratic voltage, the display cleanly reads out the precise output duty cycle as a percentage from 000 to 100, giving users absolute control over repeat adjustments. The module includes a wired remote potentiometer for fine speed tuning, alongside an independent latching start-stop green button switch for instant power isolation. Complete with heavy-duty internal power filtering and robust terminal block barriers on the rear, the CCM5D serves as an ideal, user-friendly control station for custom laboratory pumps, conveyor setups, automated mechanical models, and DIY electronic workstation apparatuses.
Key Features

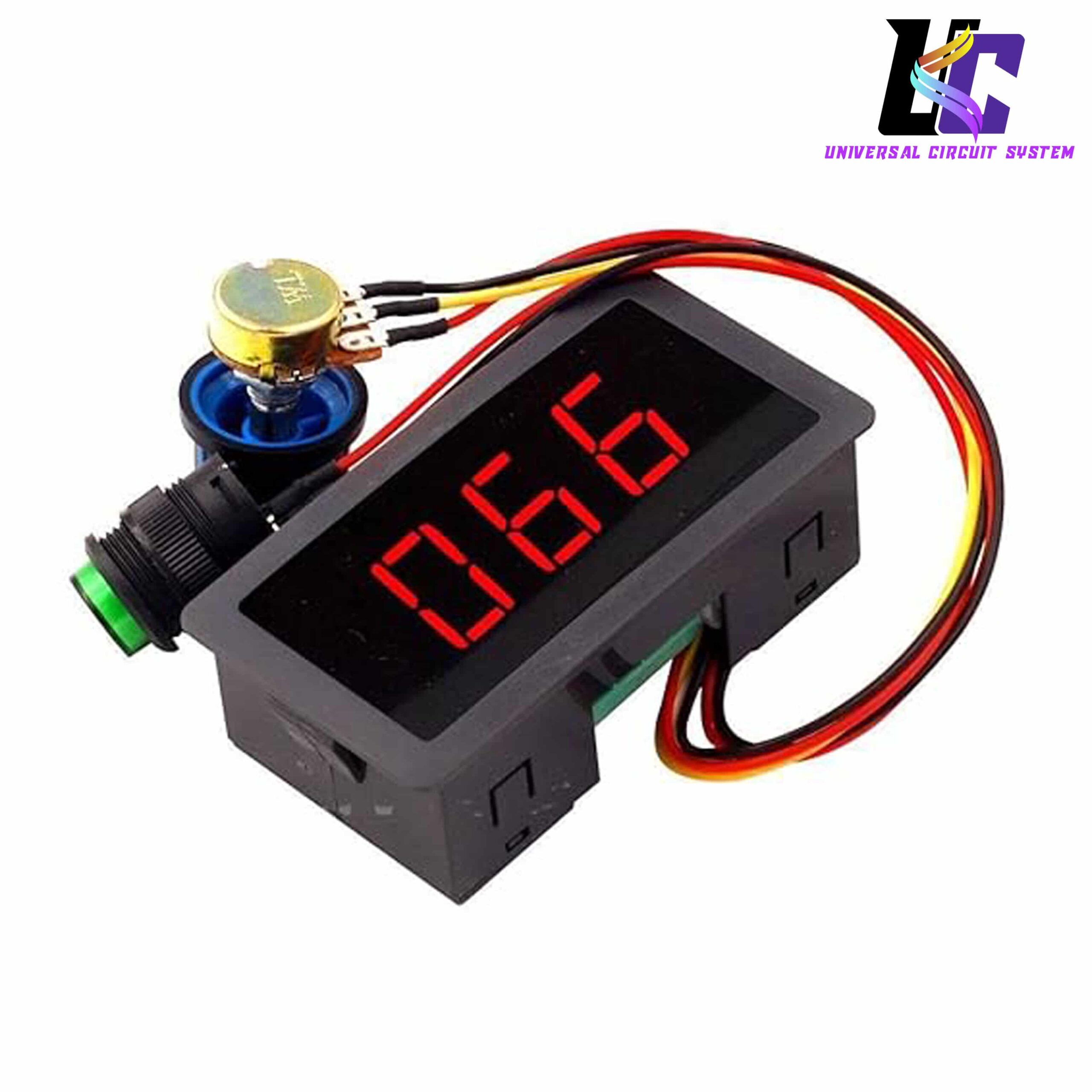

- Precise Digital Readout: The bright 3-digit LED panel cleanly tracks speed changes as a percentage metric from 0% to 100%.
- Wide Voltage Compliance: Operates seamlessly across a wide DC 6V, 12V, 24V, and 30V spectrum to match diverse motor standards.
- Stepless PWM Regulation: Employs energy-efficient PWM duty cycle adjustment, preventing motor stalling at ultra-low speeds.
- Integrated Start-Stop Switch: Includes an independent, panel-mountable green push button for fast motor braking and power management.

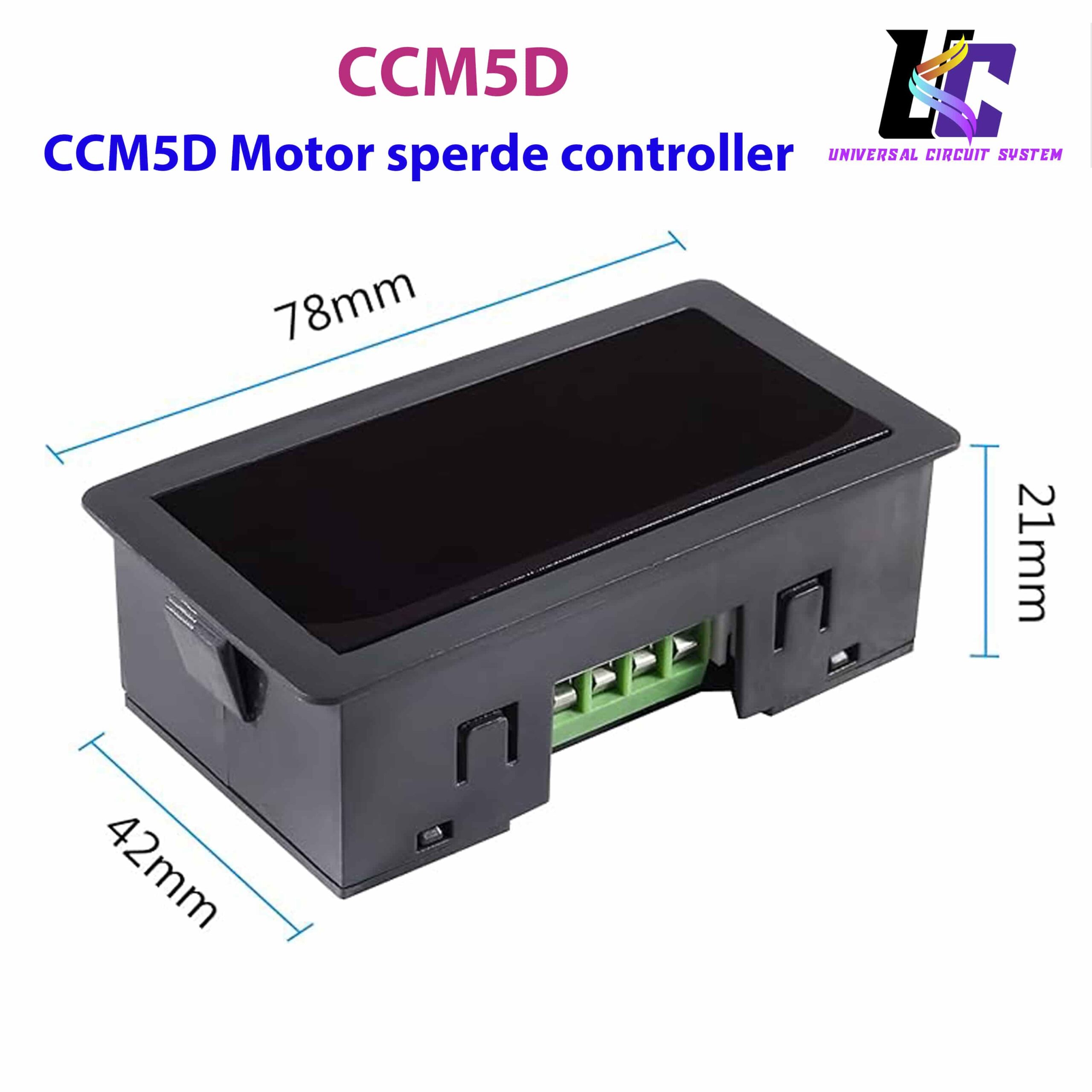

- Clean Panel Installation: Snaps directly into standard rectangular panel cutouts, shielding raw internal circuitry from user contact.
Technical Specifications
- Model Designation: CCM5D [0]
- Working Input Voltage Range: DC 6V – 30V [0]
- Maximum Continuous Current: 5A [0]
- Maximum Peak / Peak Rated Power: 150W [0]
- PWM Frequency: 21kHz
- PWM Pulse Width Duty Cycle Range: 0% – 100% [0]
- Display Interface: 0.56-inch 3-Digit Red LED Digit Array [0]
- Rear Termination Type: 4-Position Screw Terminal Blocks (Power In +, Power In -, Motor Out +, Motor Out -) [0]
If you want, tell me if you need help with:
- Providing a terminal diagram layout for the rear power/motor connections [0]
- Customizing the description format for Amazon, eBay, or AliExpress listings
- Adding important safety precautions regarding inductive spike protection and brush motor compatibility
