DiliKS 900M-T-B Conical Soldering Iron Tip Replacement
Roll over image to zoom in
৳ 80.00৳ 100.00 (-20%)

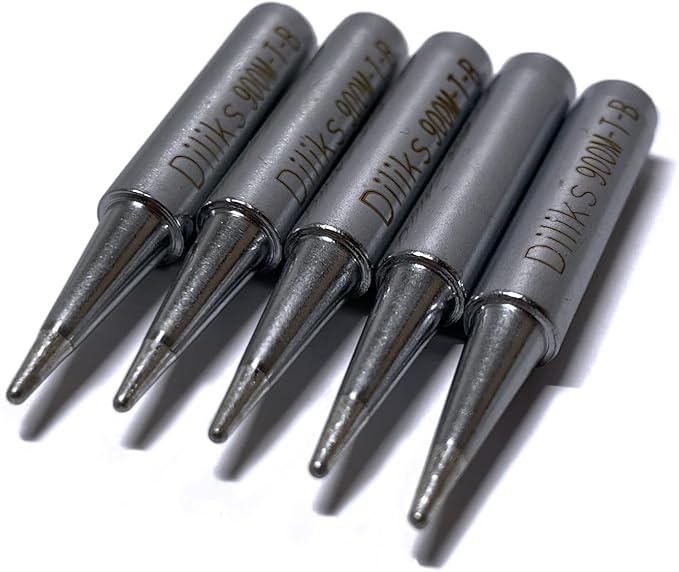

This is a high-quality 900M-T-B standard conical soldering iron tip featuring an all-round, point-shaped profile. It serves as an excellent general-purpose bit for everyday electronics repair, component assembly, and fine wire soldering. The tip is built with a highly conductive red copper core and is fully compatible with standard 936, 937, and 907 style soldering stations.
Product Overview
The DiliKS 900M-T-B Conical Soldering Iron Tip is a standard, all-round general-purpose bit designed for everyday electronic assembly and repair. Featuring a symmetrical, point-shaped conical profile (B-type), this tip can be used from any angle without rotating the iron handpiece. It is the ideal foundational tool for hobbyists, educators, and electronics technicians who need a versatile bit capable of handling both small point soldering and medium-sized through-hole components.
Premium Multi-Layer Construction
This replacement tip features a rugged composite architecture engineered to withstand high temperatures and resist harsh chemical corrosion:
- High-Conductivity Red Copper Core: Formed from pure copper to deliver exceptional thermal transfer, minimizing temperature drops during continuous joint applications.
- Special Iron Plating: A specialized iron barrier encases the copper core to prevent premature erosion and degradation from molten solder alloys.
- Corrosion-Resistant Chromium Plating: The non-working shaft is treated with chromium to block oxidation and prevent unnecessary solder travel up the body.
- Factory Pre-Tinned Conical Point: The functional point arrives pre-tinned with a lead-free solder coating to prevent oxidation right out of the box and facilitate immediate wetting.
Technical Specifications & Dimensions
| Feature | Specification Details |
|---|---|
| Model Number | 900M-T-B |
| Tip Profile Style | Conical Point (B-Series) |
| Total Body Length | 43.00 mm (approx. 1.69 in) |
| Shaft Length (Outer Barrel) | 25.50 mm (1.004 in) |
| Tapered Tip Length | 23.50 mm (0.925 in) |
| Outer Diameter (OD) | 6.50 mm (0.256 in) |
| Inner Chamber Diameter (ID) | 4.00 mm (0.157 in) |
Hardware & Station Compatibility

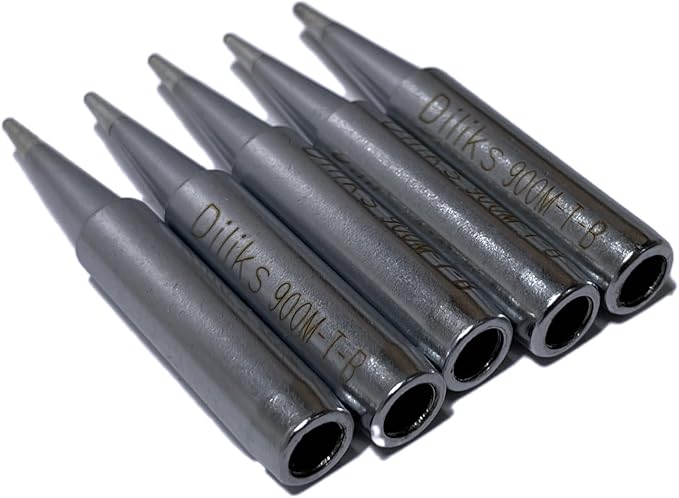

Designed with a universal hollow internal sleeve, this tip fits over standard ceramic heating elements. It is directly compatible with the following hardware configurations:
- Hakko Systems: 936, 937, 928, 701, and 907 style soldering handpieces.
- Aoyue, Yihua, & Atten: 936, 936A, 937D, 852D+, 878D, and 898D rework stations.
- Generic Power Units: Any desktop analog or digital soldering station configured for standard 900M series consumables.
Common Use Cases
- General Purpose Assembly: Soldering standard through-hole components like resistors, capacitors, and dual in-line package (DIP) integrated circuits.
- Wire and Cable Termination: Tinning and attaching stranded or solid-core hookup wires to terminal blocks, switches, and potentiometers.
- Point-to-Point Prototyping: Wiring circuit patterns onto standard perfboard or stripboard prototyping layouts.
Reviews
There are no reviews yet.
