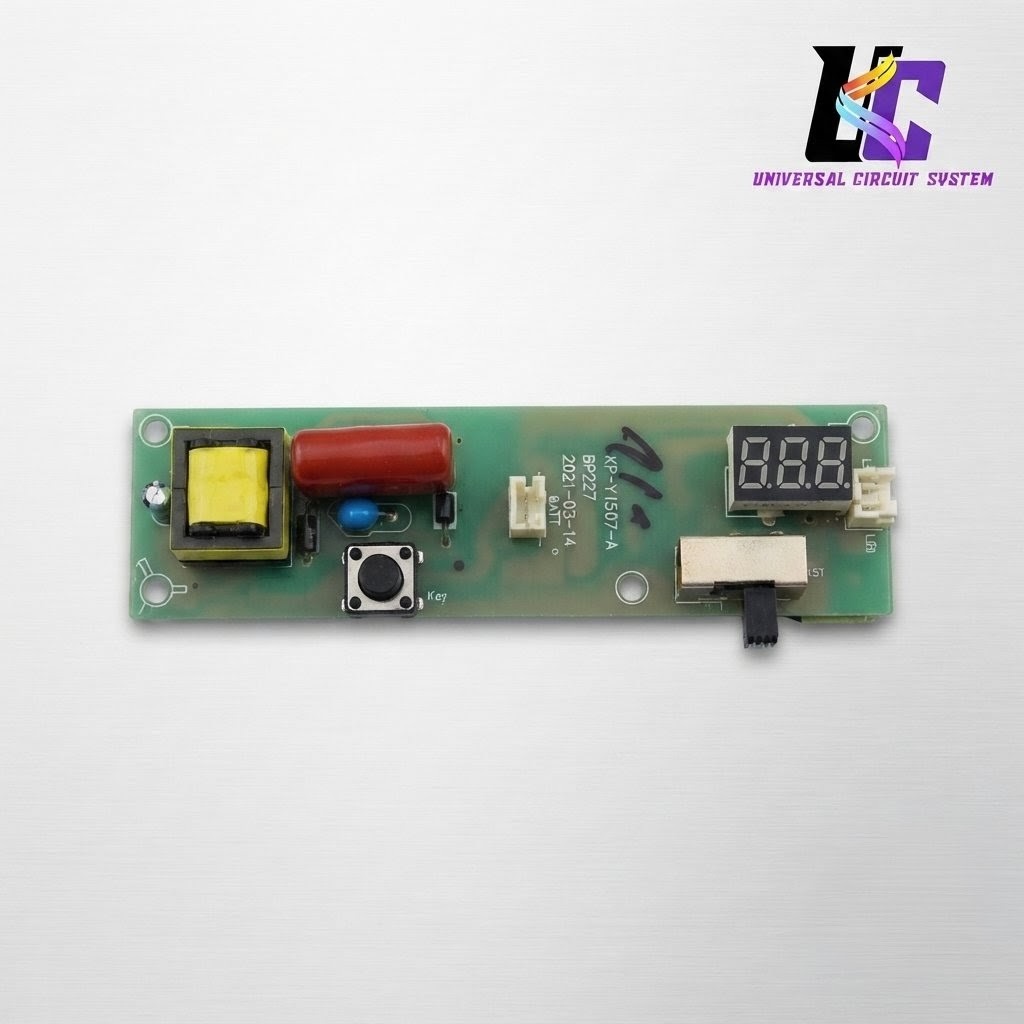

mosquito killer bat circuit board (model PX-Y1507-A)
Roll over image to zoom in
৳ 220.00৳ 300.00 (-27%)
⚡ PX-Y1507-A High-Voltage Mosquito Killer Bat Circuit Board
The PX-Y1507-A is an all-in-one replacement high-voltage step-up generator module designed for quick repairs and DIY electronic insect swatter projects. This compact PCB board seamlessly restores full zapping power to your electronic racket while introducing modern tracking upgrades.
💡 Key Highlights
- High-Voltage Output: Delivers efficient step-up inversion to eliminate flies and mosquitoes instantly on contact.
- Digital LED Display: Features a built-in 2-digit numerical panel for real-time battery percentage tracking.
- Dual Safety Controls: Features an integrated slide power switch and a tactile trigger button for safe handling.
- Easy Replacement: Compact architecture with clear terminal markings for straightforward wire soldering.
🗒 Quick Specs
- Model: PX-Y1507-A / BP227
- Input Compatibility: 3.7V Li-ion or 4V Lead-Acid rechargeable batteries.
If you are ready to install this module, let me know:
- Do you need help identifying the positive and negative battery terminals?
- Do you want to verify the grid wire connections?
I can guide you through the process to ensure a safe assembly!
PX-Y1507-A High-Voltage Mosquito Killer Bat Circuit Board
📌 Overview
The PX-Y1507-A is an all-in-one replacement printed circuit board (PCB) module designed specifically for repairing or upgrading electronic mosquito killer rackets. This high-efficiency step-up generator seamlessly replaces damaged factory internals, restoring full insect-zapping capabilities to your handheld electronic swatter. Built with modern safety configurations and a digital read-out, it is the ideal choice for both practical home appliance repair and DIY electronics projects.
mosquito killer bat circuit board (model PX-Y1507-A)
💡 Key Technical Features
- Advanced High-Voltage Step-Up Inverter: Safely converts low-voltage DC power from internal batteries into a momentary high-voltage output block. It provides clean, instant power across the racket’s layered metallic mesh grids to cleanly eliminate flying insects on contact.
- Integrated 2-Digit LED Status Display: Features a crisp, built-in numerical display panel that alerts users to real-time status updates (such as exact battery capacity percentages), completely removing the guesswork associated with standard flashing indicator lights.
- Dual-Stage Control Layout: Equipped with an on-board master slide power switch to prevent accidental discharges during storage, alongside a tactile push-button trigger that activates high-voltage current only when actively pressed.
- Compact, Drop-In Architecture: Formulated onto a narrow, space-conscious green composite motherboard that drops seamlessly into standard handheld racket handles without requiring tedious plastic modification.
mosquito killer bat circuit board (model PX-Y1507-A)
📊 Specifications & Components
- Model Identifier: PX-Y1507-A / BP227
- Compatible Input Voltages: Optimized for standard 3.7V Lithium-ion cells or 4V rechargeable Lead-Acid batteries.
- On-Board Subsystems: Features a dedicated step-up copper transformer coil core, a heavy-duty film safety capacitor, an automated charging interface socket, and integrated battery protection resistors.
- Production standard: Marked with explicit track layouts and positive/negative polarity mapping directly onto the silkscreen for stress-free solder tracking.
mosquito killer bat circuit board (model PX-Y1507-A)
🛠 Installation & Safety Guide
- Power Isolation: Always ensure the battery source is fully disconnected before attempting to handle or desolder standard wire networks.
- Polarity Mapping: Follow the pre-printed labels (
+and-) marked beside the power inputs to prevent catastrophic cross-wiring damage. - Discharge Caution: Treat the high-voltage capacitor block with absolute caution. Even when disconnected from batteries, high-voltage capacitors can briefly retain residual charge. Manually discharge the circuit safely before handling components.
If you are planning to install this board yourself, let me know:
- What type of battery does your racket use? (e.g., a silver rechargeable cell, a black lead-acid block)
- Do you need a step-by-step soldering wire diagram to map the mesh net connections?
I can tailor the instructions to help you complete your repair successfully!
