Mosquito Swatter Circuit Board (Model R29-T69)

Name: Mosquito Swatter Circuit Board (Model R29-T69) - UNIVERSAL CIRCUIT SYSTEM
SKU: UCS-0445
Price: 210.00 BDT
Availability: InStock

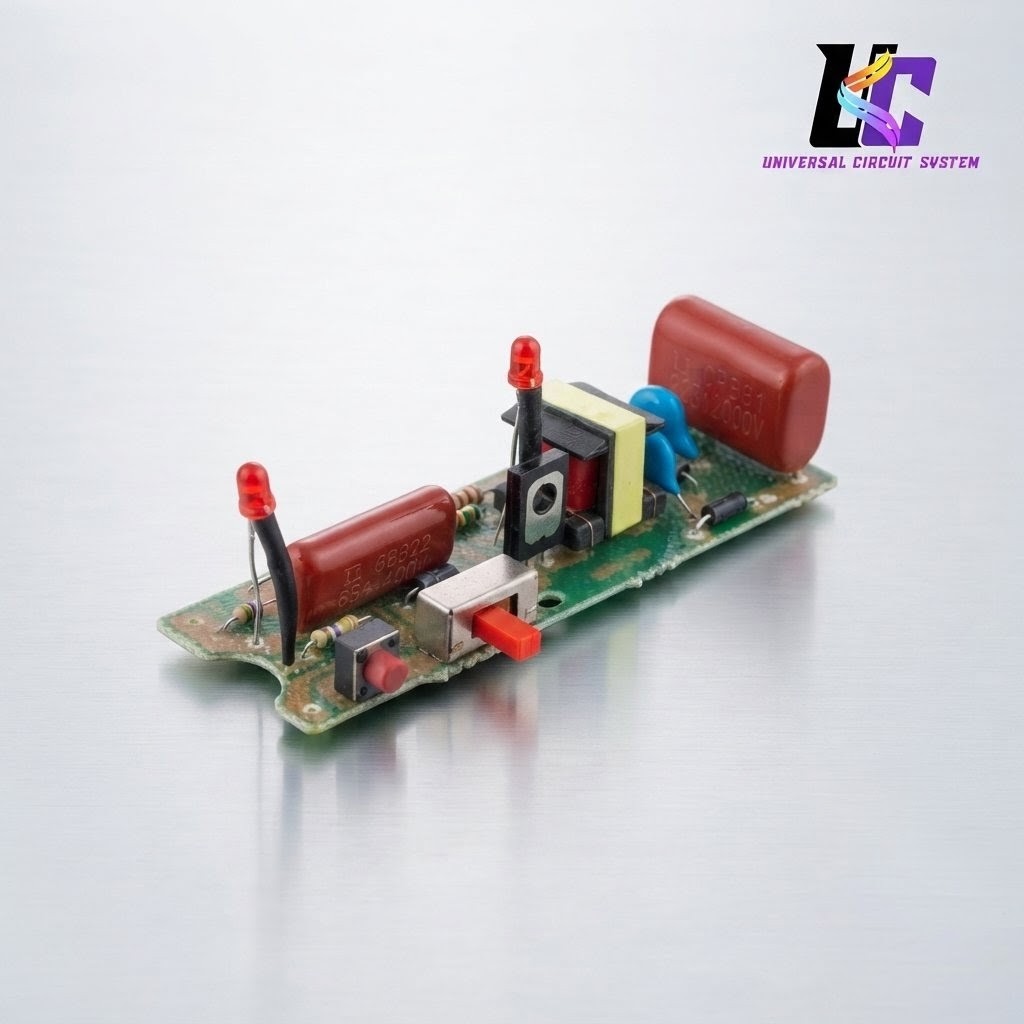

This High-Voltage Mosquito Swatter Circuit Board (Model: R29-T69) is an all-in-one electronic module designed for replacement or DIY assembly inside electric insect-killing rackets. It integrates an AC-to-DC charging infrastructure, low-voltage control triggers, and a powerful multi-stage voltage multiplier network onto a single, compact printed circuit board (PCB).

🛠️ Key Technical Features

Dual-Input Charging Infrastructure: Equipped with an integrated direct AC plug prong layout at the base, allowing for direct wall-outlet recharging. It is optimized for standard 4V lead-acid batteries or 3.7V lithium-ion battery configurations.
Multi-Stage Voltage Step-Up: Features a central pulse transformer coupled with a solid-state transistor switching circuit that efficiently elevates low battery power into an instantaneous, high-frequency AC arc.
High-Capacitance Energy Storage: Uses a robust dual-capacitor layout (featuring prominent red film capacitors and a blue ceramic surge absorber) to store high-voltage energy, delivering a powerful instantaneous discharge upon contact with insects.
On-Board Diagnostics & Control: Features dual red LED indicators to distinctly separate charging status from high-voltage grid activation. It includes a built-in safety slide power switch and a responsive tactile push-button trigger.

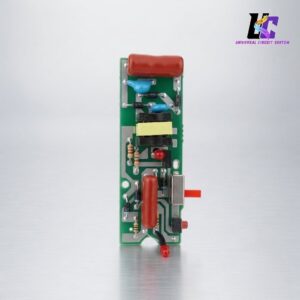

Mosquito Swatter Circuit Board (Model R29-T69)

📊 Specifications

Attribute	Parameter / Details
Model Code	R29-T69
Input Charging Voltage	AC 110V – 220V, 50/60 Hz
Compatible Battery Output	3.6V – 5V DC (Lead-Acid or Li-ion)
Estimated Grid Output	2000V – 3000V Pulse DC
On-Board Controls	2-Position Slide Switch, Tactile Spring Button
Visual Indicators	2x Red LEDs (Charging / Activation)

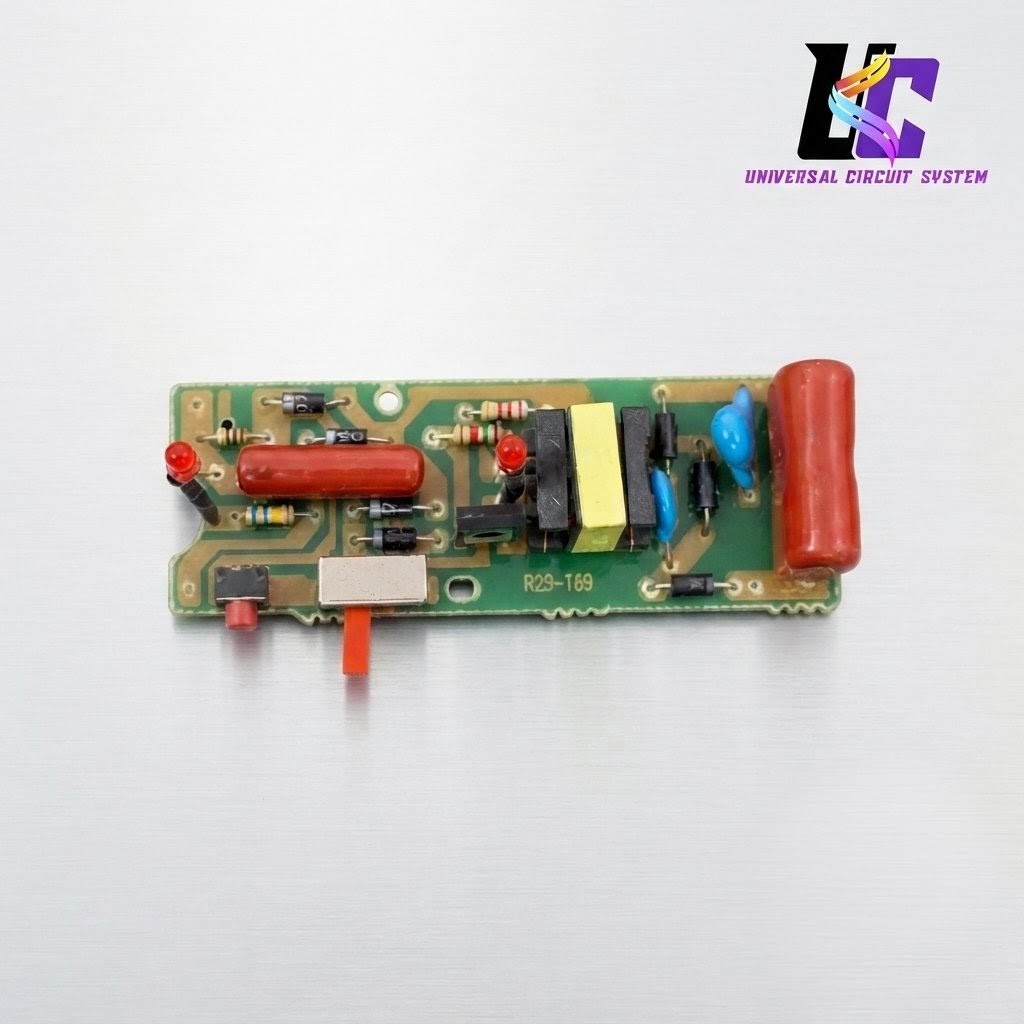

Mosquito Swatter Circuit Board (Model R29-T69)

Applications
- - Direct Repairs:Perfect drop-in replacement board for broken, non-sparking, or water-damaged electric mosquito bats.
  - DIY Electronic Projects: Ideal for hobbyists building custom bug zappers, static electricity generators, or exploring high-voltage pulse physics.
