4-Pin to 6-Pin XH2.54 Terminal NEMA 17 Stepper Motor Cable
Roll over image to zoom in
৳ 250.00৳ 300.00 (-17%)

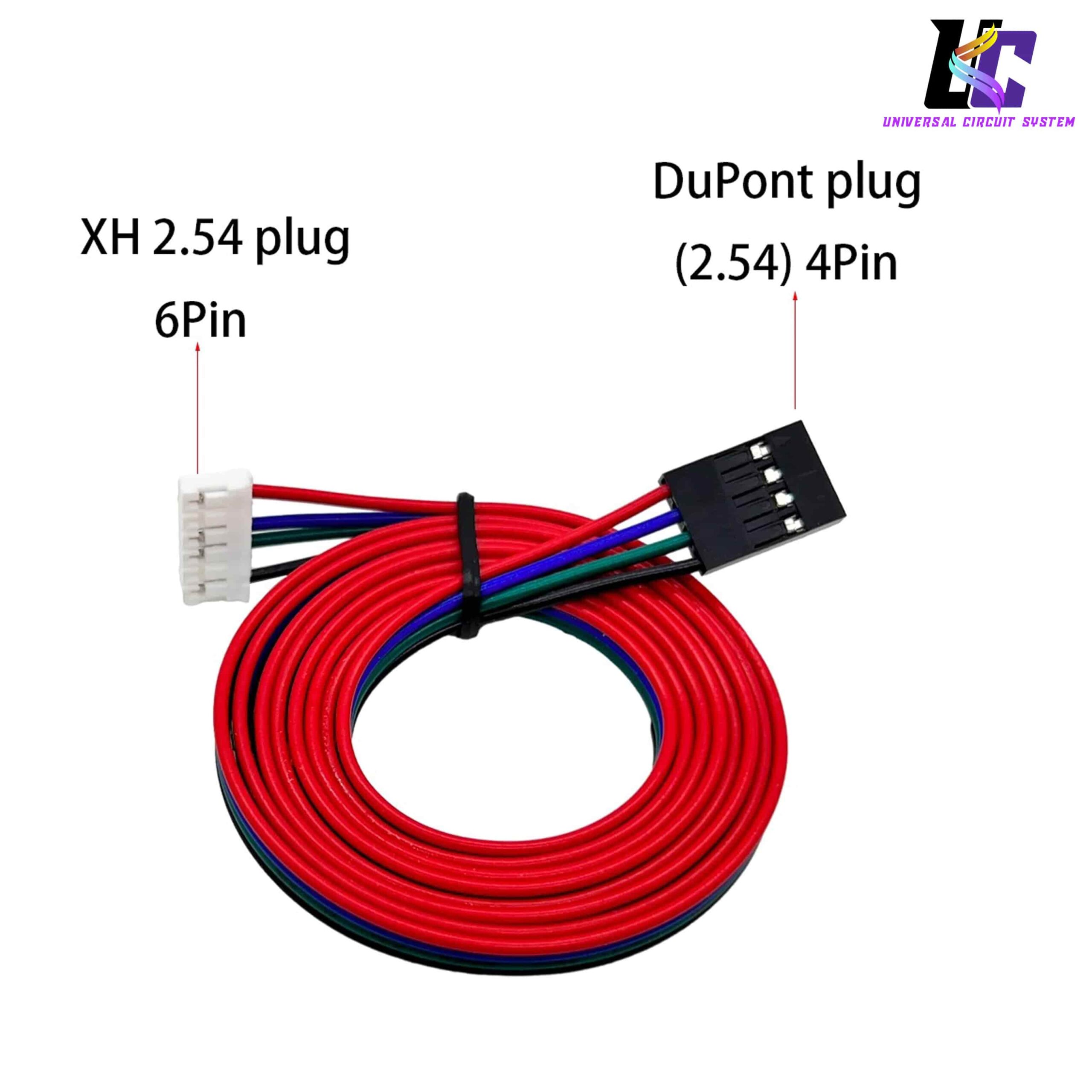

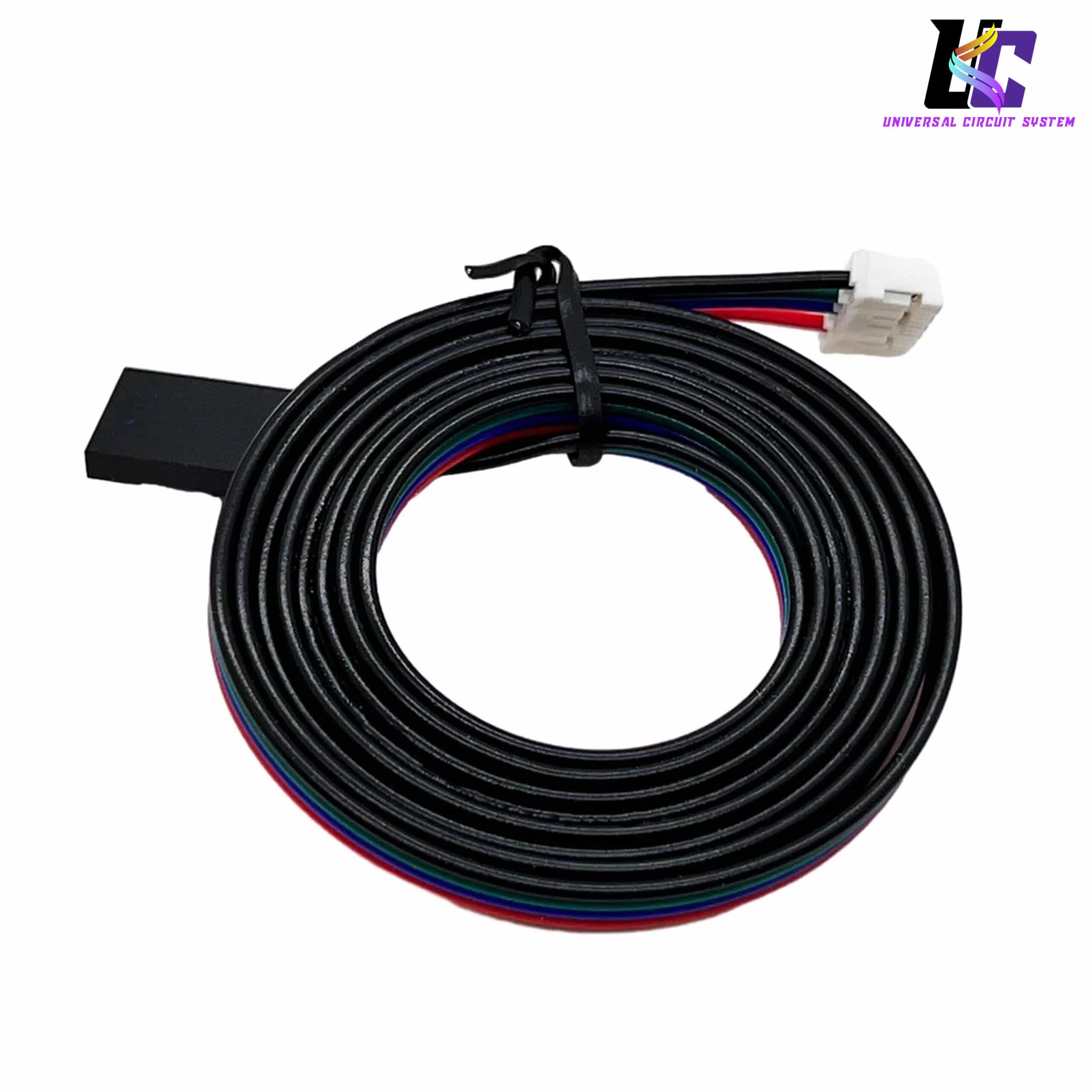

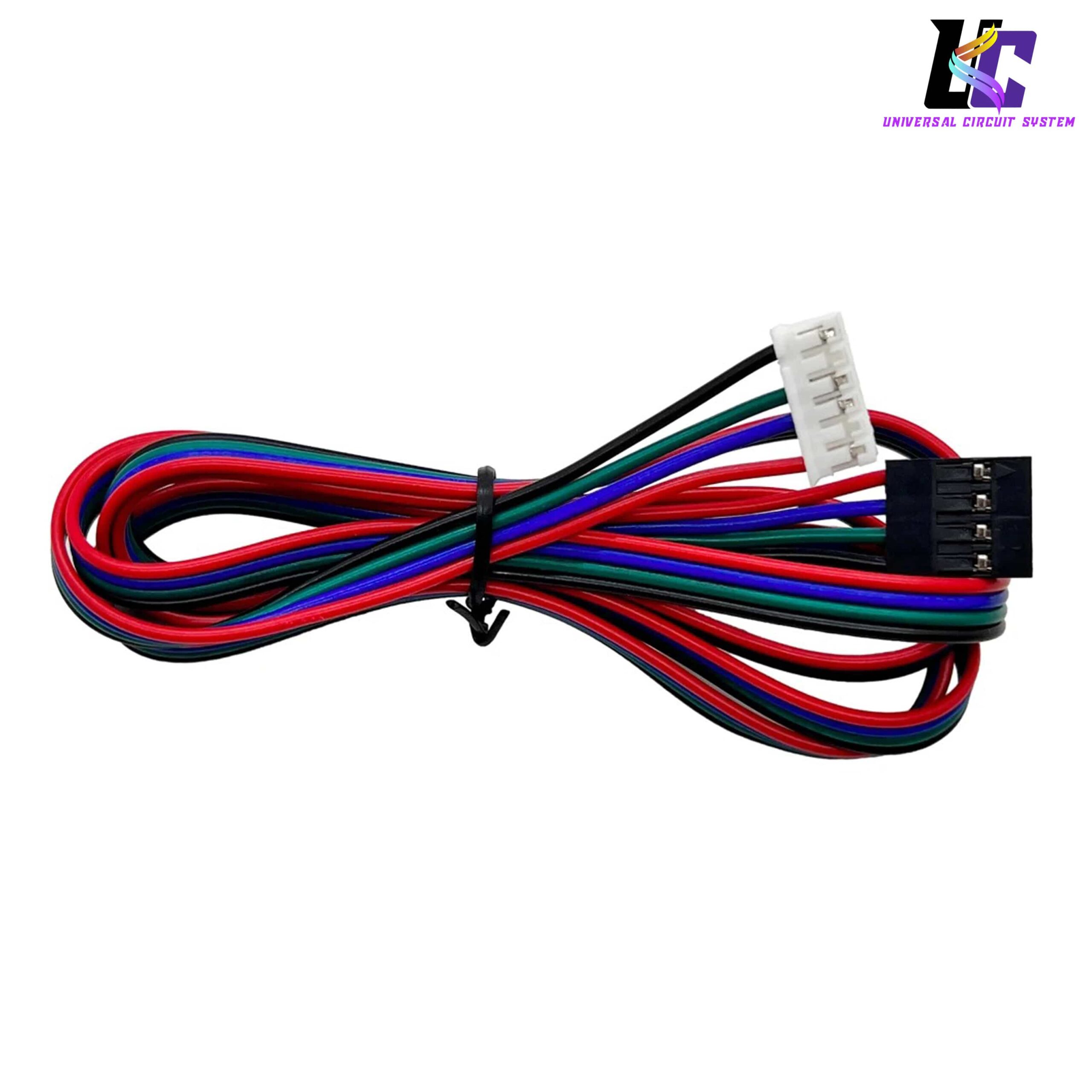

This is a high-quality 4-pin to 6-pin NEMA 17 stepper motor cable designed for 3D printers, CNC machines, and robotics projects. It features a 6-pin JST XH2.54 terminal for the motor connection and a 4-pin Dupont connector for the driver control board. The bundled 4-wire color-coded layout (Black, Green, Blue, Red) ensures straightforward connection tracking and reliable current delivery to phase coils.
Product Overview
The 4-Pin to 6-Pin NEMA 17 Stepper Motor Cable is a specialized, multi-conductor connection wire engineered to deliver reliable current and signal transmission between bipolar stepper motors and electronic control boards. Optimized for the rigorous, continuous motion environments of 3D printers, CNC routers, and automated robotics assemblies, this cable provides a secure connection that prevents accidental disconnects and signal disruptions.
Design & Connector Configuration
This cable is configured with two distinct terminal ends to bridge the gap between standard motor ports and motherboard headers:

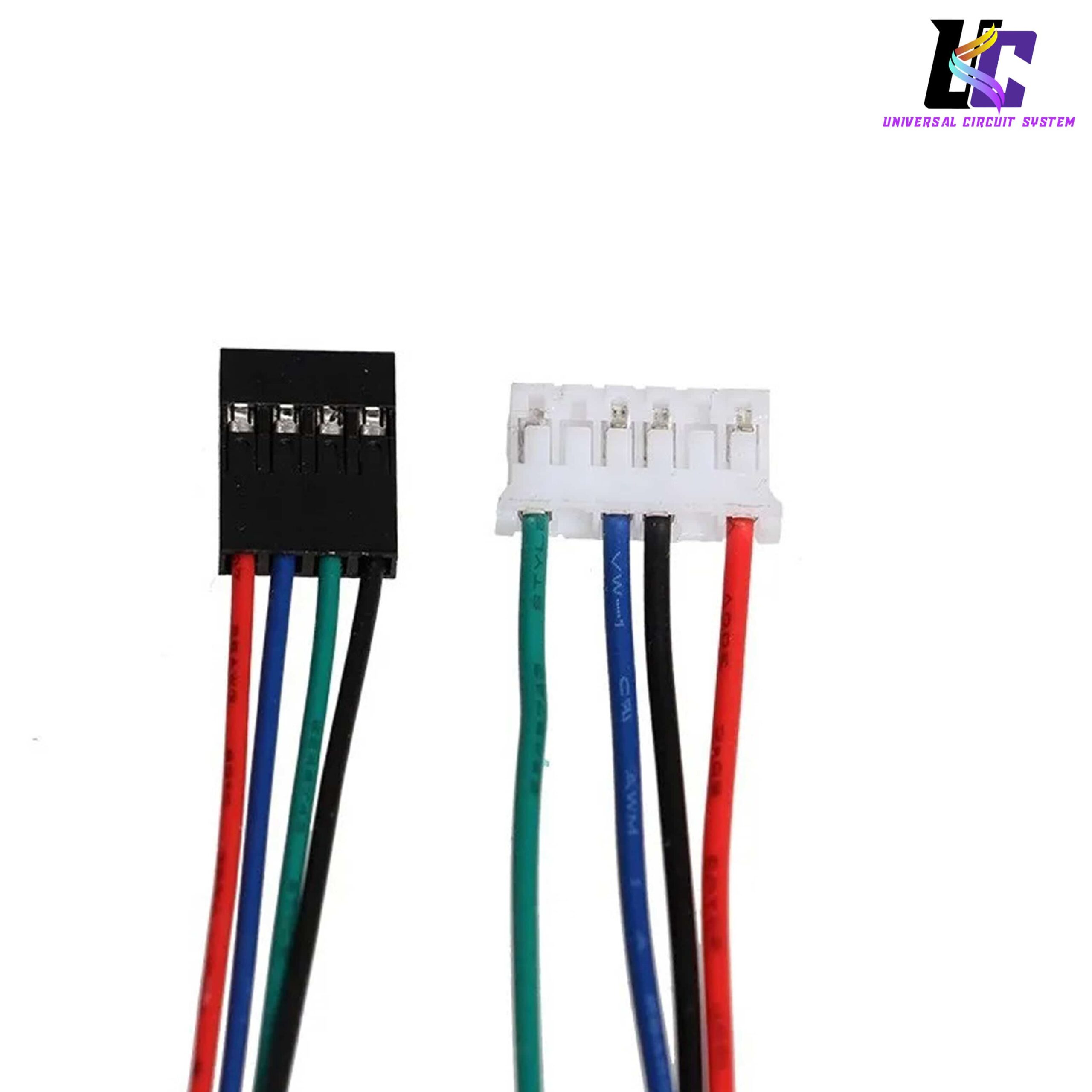

- Motor Interface (6-Pin Connector): Outfitted with a 6-pin female JST XH2.54 terminal block. This side plugs directly into the integrated terminal socket found on the body of most standard NEMA 17 stepper motors. (Note: Only 4 pins are active and wired to align with the motor’s internal dual-phase coils).
- Driver Interface (4-Pin Connector): Features a 4-pin female Dupont-style pitch connector. This end is designed to plug securely into standard 2.54mm pin headers on popular microcontroller expansion boards, RAMPS shields, or integrated 3D printer motherboards (such as Creality, BIGTREETECH, or Makerbase boards).
- Color-Coded Wiring: Uses a standard 4-wire coding pattern (Black, Green, Blue, Red) wrapped cleanly in a temporary twist-tie bundle. This visual setup simplifies phase tracing and ensures users can quickly spot correct orientation during custom wiring configurations.
Technical Specifications
| Feature | Specification Details |
|---|---|
| Compatible Hardware | NEMA 17 Bipolar Stepper Motors |
| Motor-Side Terminal | 6-Pin JST XH2.54 Female |
| Driver-Side Terminal | 4-Pin Dupont 2.54mm Female |
| Conductor Material | High-conductivity tinned copper strands |
| Insulation Jacket | Flexible, heat-resistant PVC |
| Application Suitability | High-flex, continuous reciprocating linear motions |
Common Use Cases
- 3D Printer Assembly and Extensions: Serving as a reliable replacement or extended wire loom for X, Y, Z axis motors, or dual-drive bowden/direct-drive extruders on Cartesian, CoreXY, and Delta style 3D printers.
- Desktop CNC Machinery: Driving standard low-voltage stepper actuators on DIY desktop engravers, laser cutters, and PCB milling equipment.
- Precision Robotics Kits: Wiring automated pan-tilt camera rigs, robotic arms, and automated laboratory fluid-dispensing gear.
