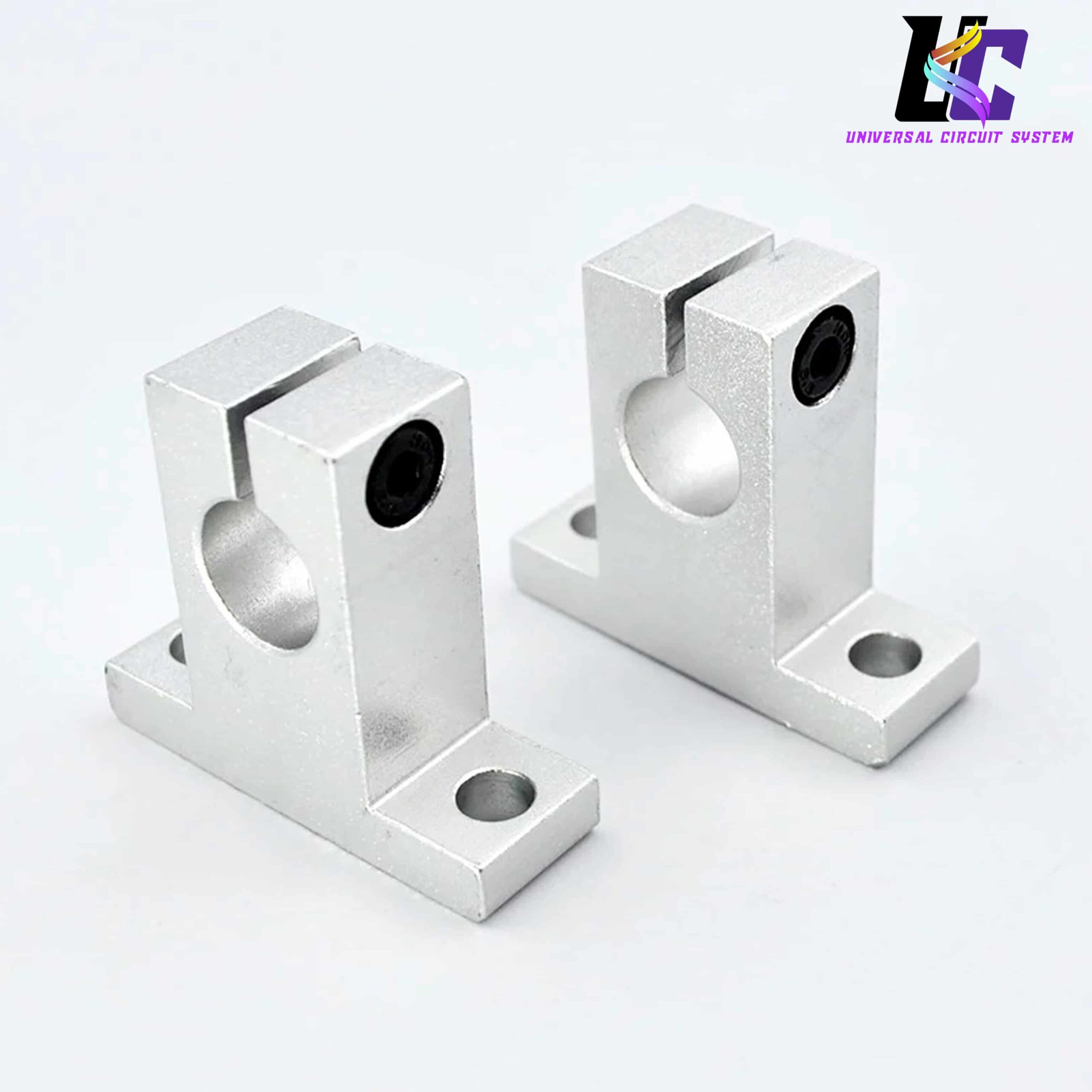

SK10 10mm Aluminum Linear Rail Shaft Support Bracket
Roll over image to zoom in
৳ 300.00৳ 350.00 (-14%)
The SK10 10mm Linear Rail Shaft Support Bracket is a heavy-duty aluminum block designed to secure 10mm smooth rods and linear shafts firmly in place. It features a clamping design with an integrated locking screw for a slip-free hold, making it an essential component for high-precision DIY CNC routers, 3D printers, and automated linear motion systems.
Full Product Description
The SK10 10mm Linear Rail Shaft Support Bracket is a high-precision hardware component designed to rigidly mount and secure 10mm linear shafts, smooth rods, or optical axes. Engineered for high-load stability and minimal vibration, this block serves as a foundational element for multi-axis guide systems. It features a split-clamp design equipped with a top-mounted clamping screw, allowing you to easily lock the shaft into position without causing surface scoring or slippage under mechanical stress.
Constructed from premium-grade cast aluminum alloy, the bracket offers an optimal strength-to-weight ratio alongside exceptional corrosion resistance for long-term industrial use. The base is precision-machined flat to guarantee perfect perpendicularity between the mounting surface and the linear shaft. This makes it an ideal choice for machinery that demands smooth, linear motion trajectories, such as custom CNC routers, 3D printers, laser engravers, and pick-and-place automation systems.
Key Product Features
- Robust Clamping Design: Features an integrated lock bolt that tightens firmly around the shaft, preventing linear displacement or axial rotation during operation.
- Premium Aluminum Construction: Sandblasted and anodized aluminum body ensures superior resistance against wear, surface oxidation, and harsh workshop environments.
- Precision Alignment: Perfectly engineered dimensions provide consistent centerline height, minimizing axis binding and mechanical friction.
- Easy Installation: Pre-drilled dual mounting holes in the flanged base facilitate straightforward mounting onto flat beds, structural profiles, or aluminum extrusions.
- Broad Compatibility: Universally compatible with any standard 10mm hard or soft linear rods, chrome-plated shafts, and carbon steel guides.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | SK10 / SHF10 |
| Compatible Shaft Diameter | 10 mm |
| Material | Cast Aluminum Alloy |
| Surface Finish | Sandblasted / Anodized Aluminum |
| Mounting Type | Vertical Flanged Base |
| Clamping Bolt Size | M4 |
| Base Mounting Hole Size | ~5.5 mm (for M5 bolts) |
| Applications | 3D Printers, CNC Machinery, Robotics, Automation |
