SK8 8mm Aluminum Linear Rail Shaft Support Bracket

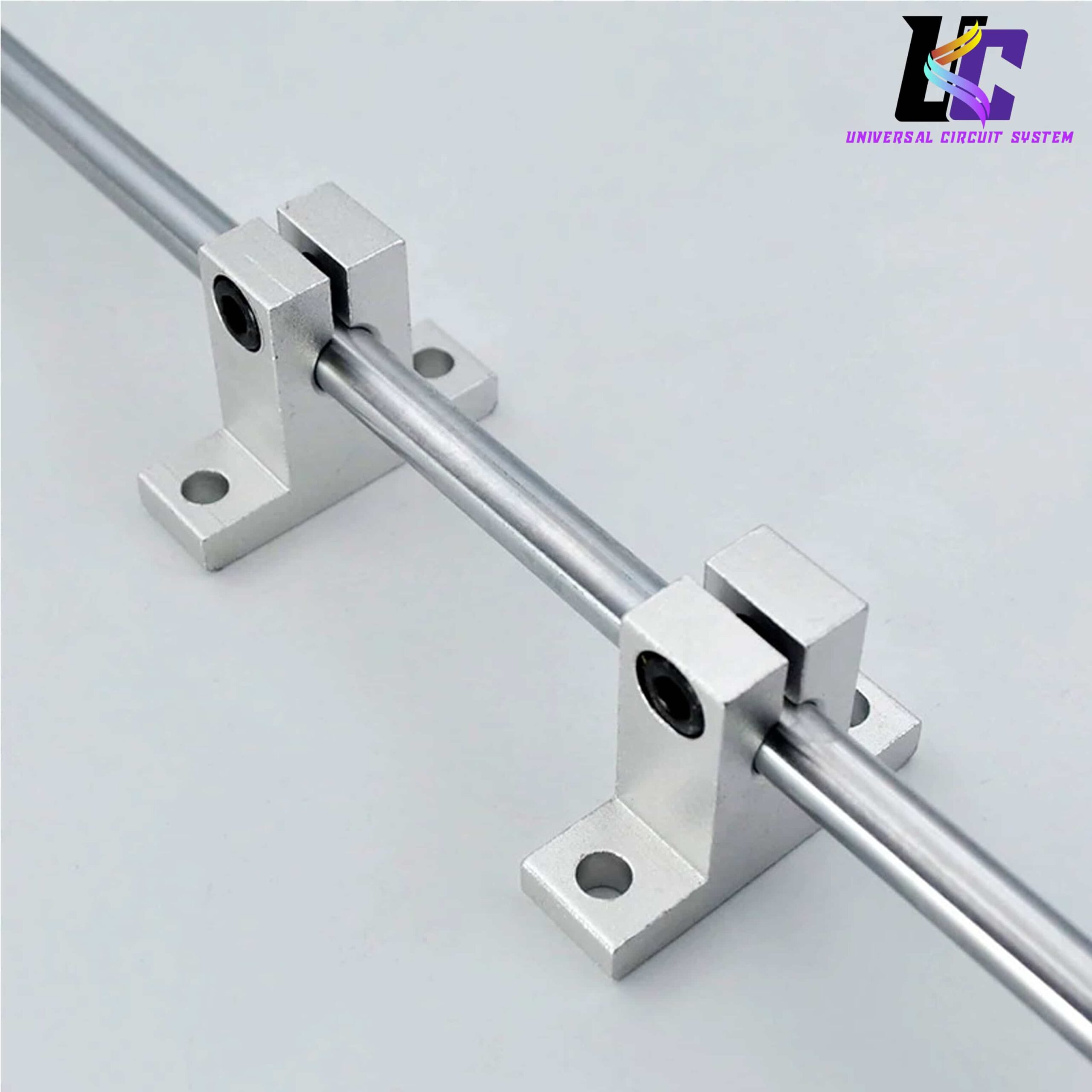

The SK8 8mm Linear Rail Shaft Support Bracket is a precision-engineered hardware block designed to rigidly anchor and support standard 8mm linear shafts, smooth rods, or optical axes. Engineered to ensure accurate axial alignment and reduce mechanical vibrations, this support block acts as a robust foundation for multi-axis guide structures. It utilizes a split-clamp design equipped with a top-mounted tightening screw, allowing you to lock down the guide rod with a strong, uniform grip that eliminates axial rotation and lateral slippage under load.

Constructed from high-grade cast aluminum alloy, the bracket offers excellent structural strength while remaining highly resistant to corrosion and surface oxidation. The base is precision-machined flat to guarantee perfect perpendicularity between your mounting surface and the linear shaft, preventing axis binding during high-speed travel. Its standardized, compact footprint makes it a universal component for desktop fabrication tools requiring exceptionally smooth linear travel, including custom 3D printers (such as Prusa or RepRap style models), mini CNC routers, laser engravers, and automated robotic systems.

• Rigid Clamping System: Built with an integrated pinch bolt that clamps securely around the 8mm rod, preventing linear drift or wobbling during intense mechanical movements.
• Anodized Aluminum Body: Premium sandblasted finish provides high wear resistance and protects the component against harsh workshop elements and friction.

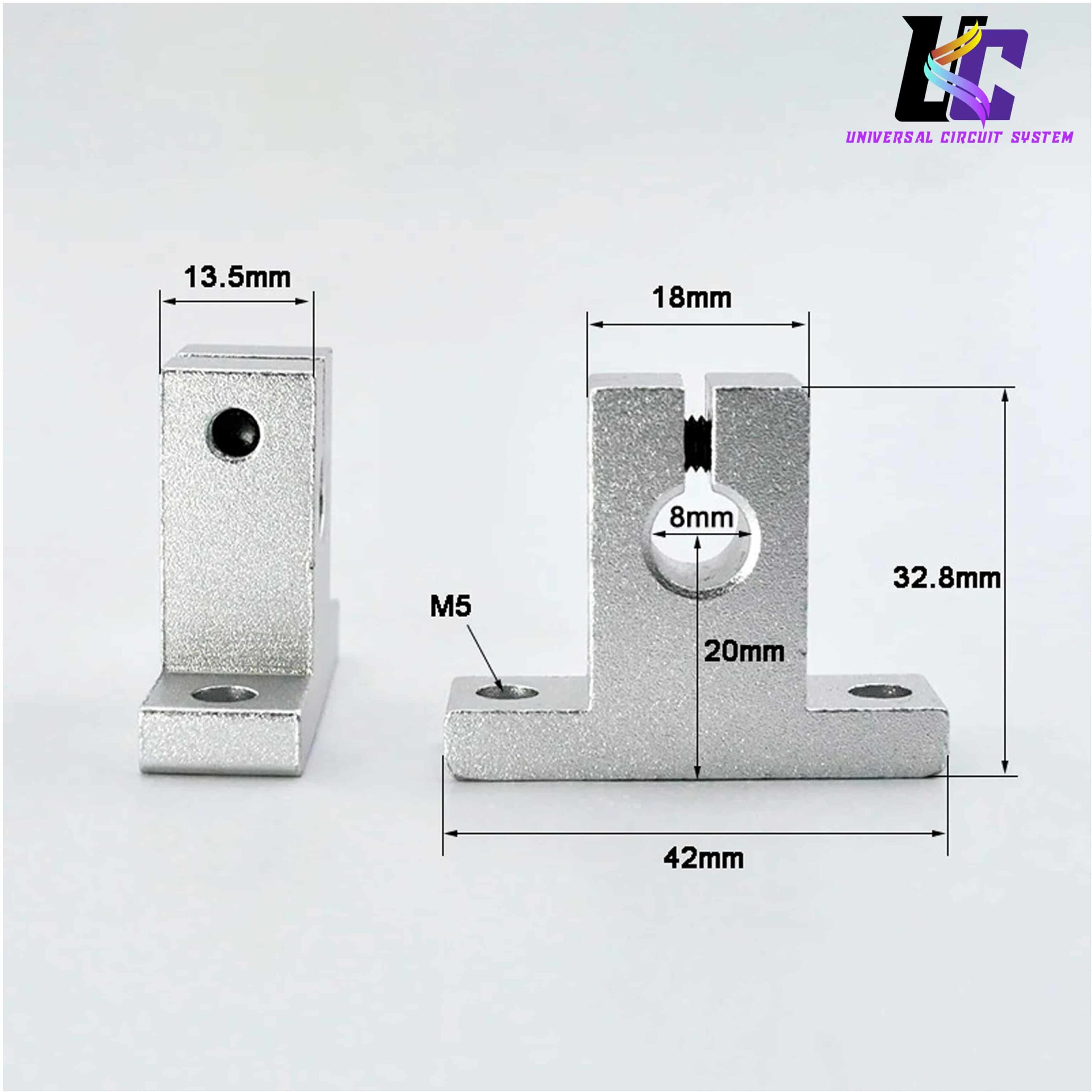

• Precision Centerline Alignment: Offers a fixed 20mm center height from the mounting base to the shaft hole, maintaining parallel consistency across dual-rail configurations.
• Standardized Base Mounting: Flanged base features dual oval holes sized for M5 bolts, making it exceptionally easy to secure onto standard aluminum extrusions, T-slot profiles, or flat plates.
• High Efficiency Compatibility: Universally fits any hard or soft 8mm round shafts, chrome-plated rods, hardened steel linear guides, and carbon fiber tubes.
